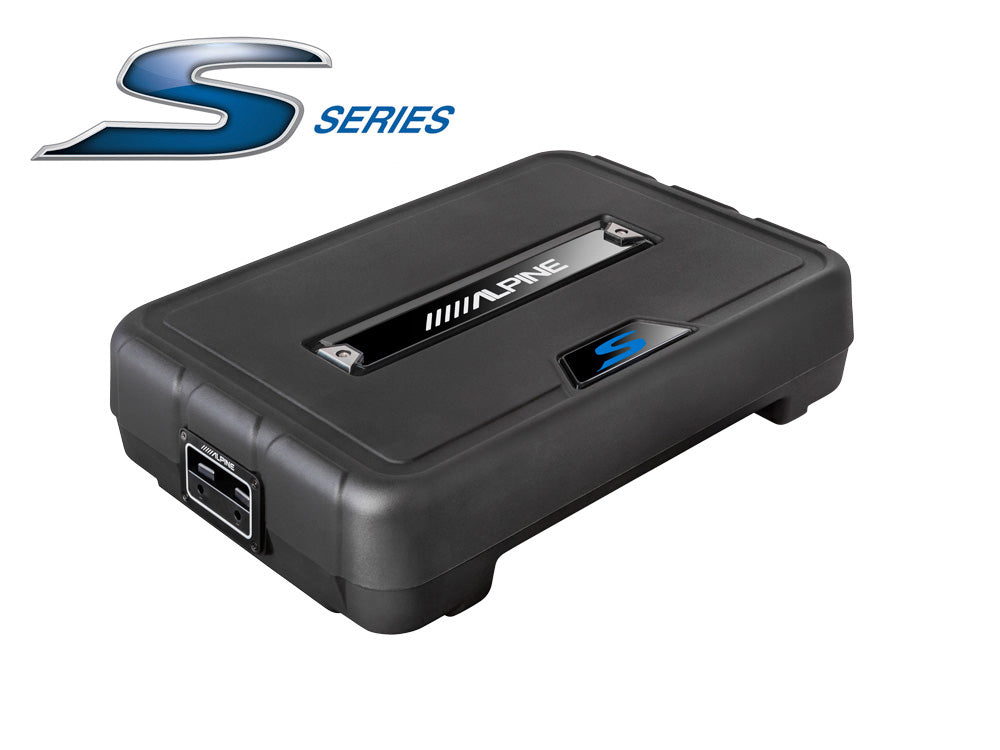

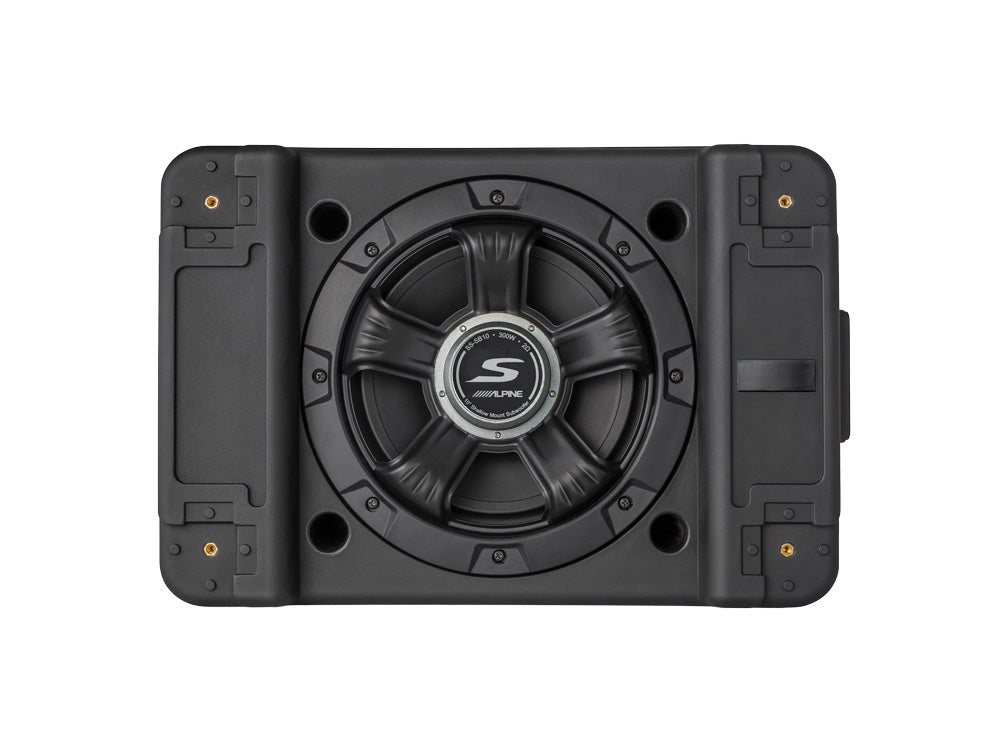

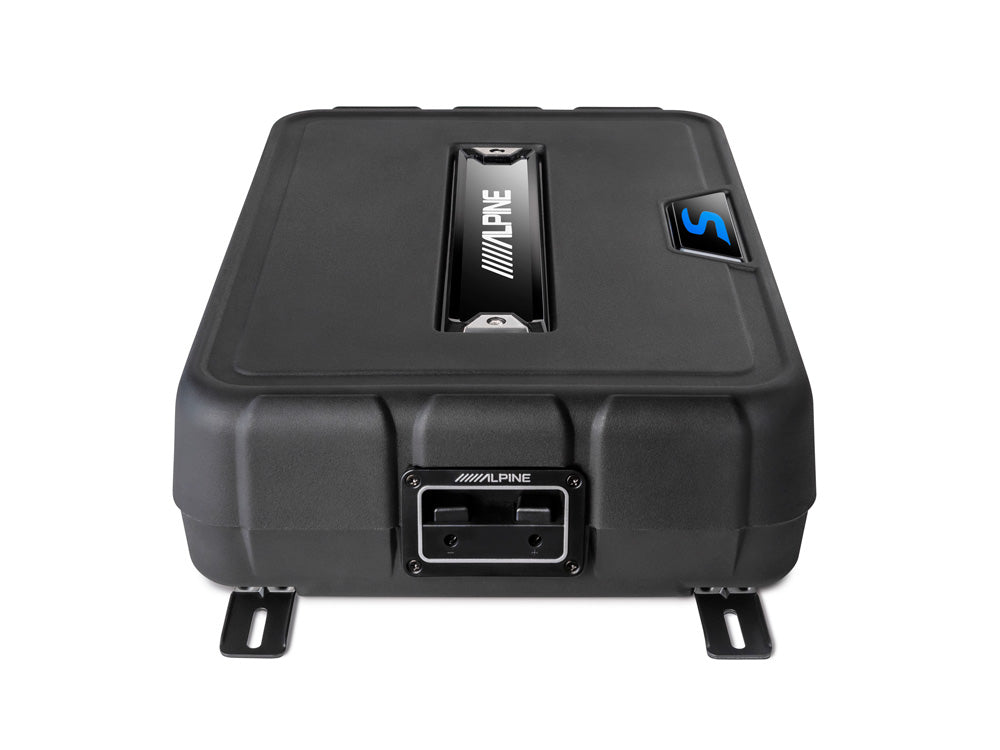

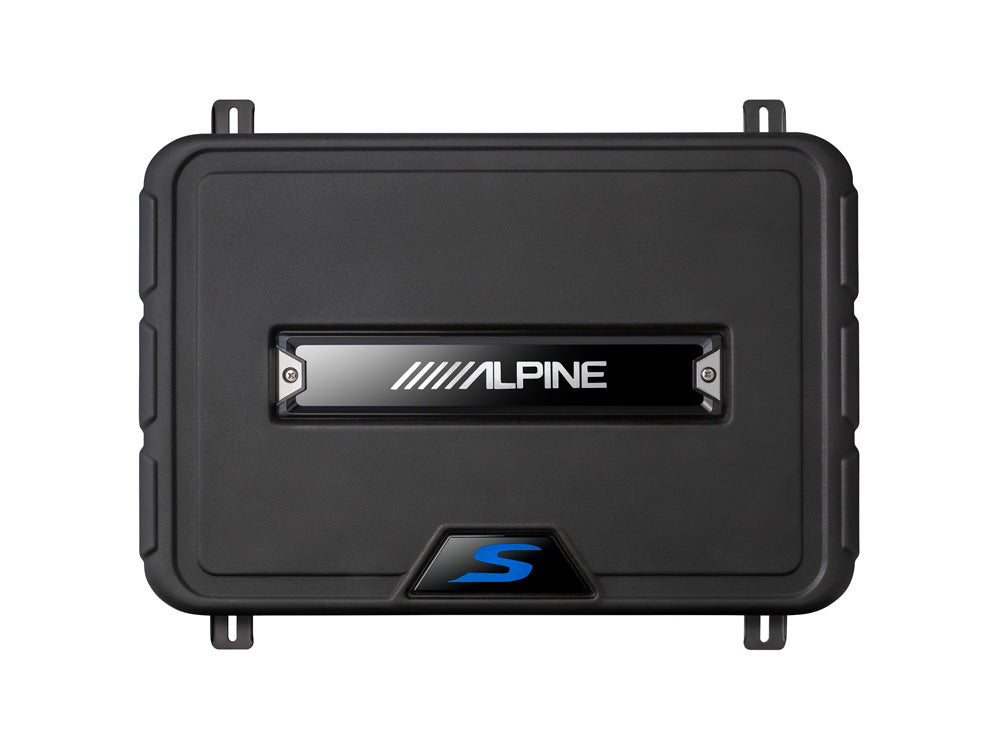

Alpine SS-SB10
S-Series Single 25 cm (10″) S-Series Shallow Preloaded Subwoofer Enclosure.

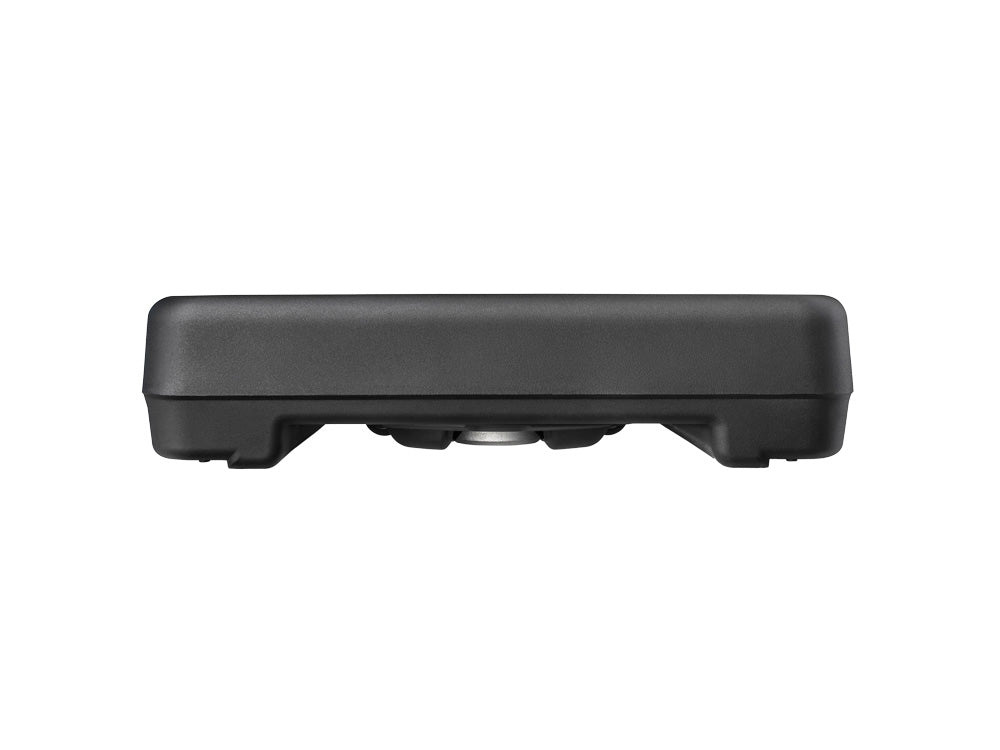

The SS-SB10 brings big, powerful bass to even the smallest spaces, so you don’t have to choose between sound and size. With its ultra-shallow 11.4cm design, this subwoofer fits where others can’t while still delivering deep, heart-pounding bass.
The innovative front-mounted motor keeps it compact without losing power, handling up to 300W RMS for a rich, immersive sound. Built to handle tough conditions, its water-resistant enclosure ensures durability no matter where the road takes you.
Plus, the adjustable, foam-padded mounting brackets make installation easy and secure. Whether you're upgrading your ride or simply craving more bass, the SS-SB10 lets you feel every beat—without taking up all your space.
The SS-SB10 is optimized to perform with Alpine's S-Series 5-channel Power Amplifier S2-A55V.
Experience powerful, deep bass in even the tightest spaces
Feel every beat as you hit the road with powerful, deep bass that fits anywhere. The ultra-shallow SS-SB10 brings rich, heart-pounding sound to your ride—so you can turn up the music, enjoy the moment, and make every drive unforgettable.
Powerful Performance
The SS-SB10 features a 5 cm voice coil inside a lightweight yet powerful neodymium magnet, delivering up to 300W RMS of power handling. Combined with a front-mounted magnet motor, this design allows for an ultra-shallow enclosure while still delivering deep, powerful bass.
Precise Bass Control
Alpine’s Gen2 DD-Linear Magnetic Circuit technology features a compact and efficient dual-gap voice coil structure, providing greater control over the motor. This results in a 22 mm peak-to-peak linear excursion for enhanced bass output.
Adjustable Mounting Options

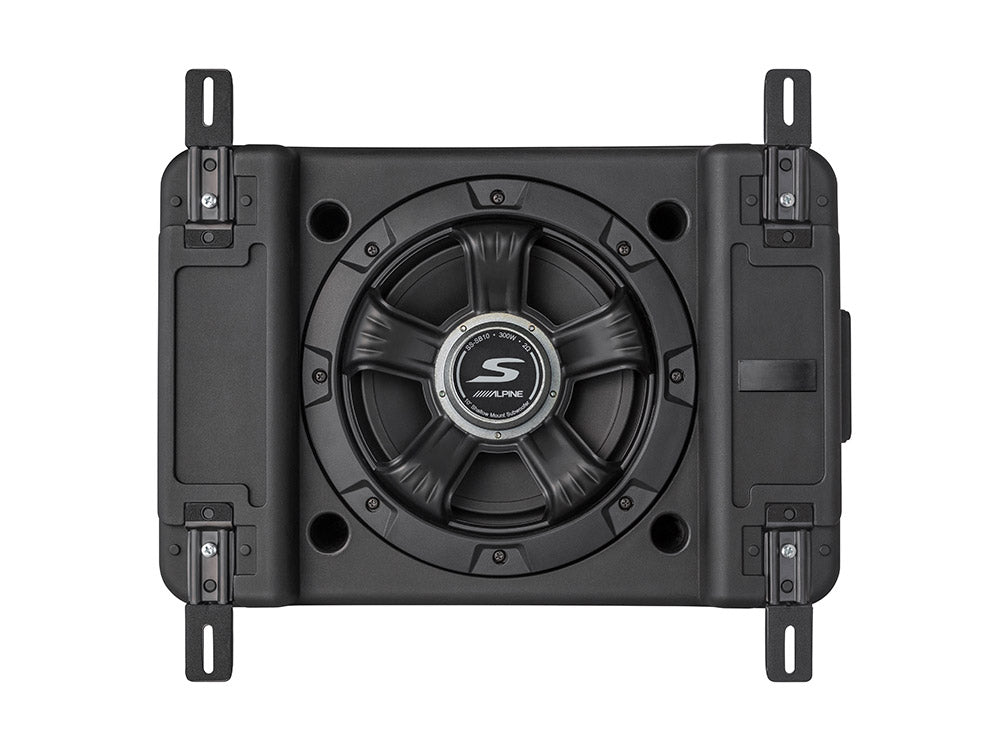

Four adjustable, foam-padded steel mounting brackets provide flexible installation options for various vehicles, while the foam padding helps reduce vibrations for smoother, high-quality sound.
Optional Power Match
With dual voice coils wired in parallel for a 2 Ohms load, the Alpine S-Series 25 cm Shallow Subwoofer Enclosure is optimized to perform with Alpine's S-Series 5-channel Power Amplifier S2-A55V. The next generation of Alpine S-Series amplifiers are designed to take your car audio experience to the next level without breaking the bank. With a sleek new redesign and upgraded features from their predecessors, these amplifiers offer exceptional performance and power on an affordable budget.
Features
- Preloaded 25 cm (10”) S-Shallow Subwoofer
- Optimal Sealed Cabinet Quality
- Neodymium Magnet
- Front-Mounted Neodymium Motor
- Alpine Gen2 DD Linear Magnetic Circuit
- Rugged Polymer Enclosure Cabinet
- Adjustable, Foam-padded Mounting Brackets for Flexible Installation & Reduced Vibration
Specifications
- Dimensions: 47 cm (W) x 11.4 cm (H) x 31.8 cm (D)
- Power Handling: 300W RMS
- Frequency Response: 35Hz-200Hz
- X-Max: 11mm 1-Way Linear
- Nominal Impedance: 2Ω
- Copper Voice Coil: 2” (5 cm)
