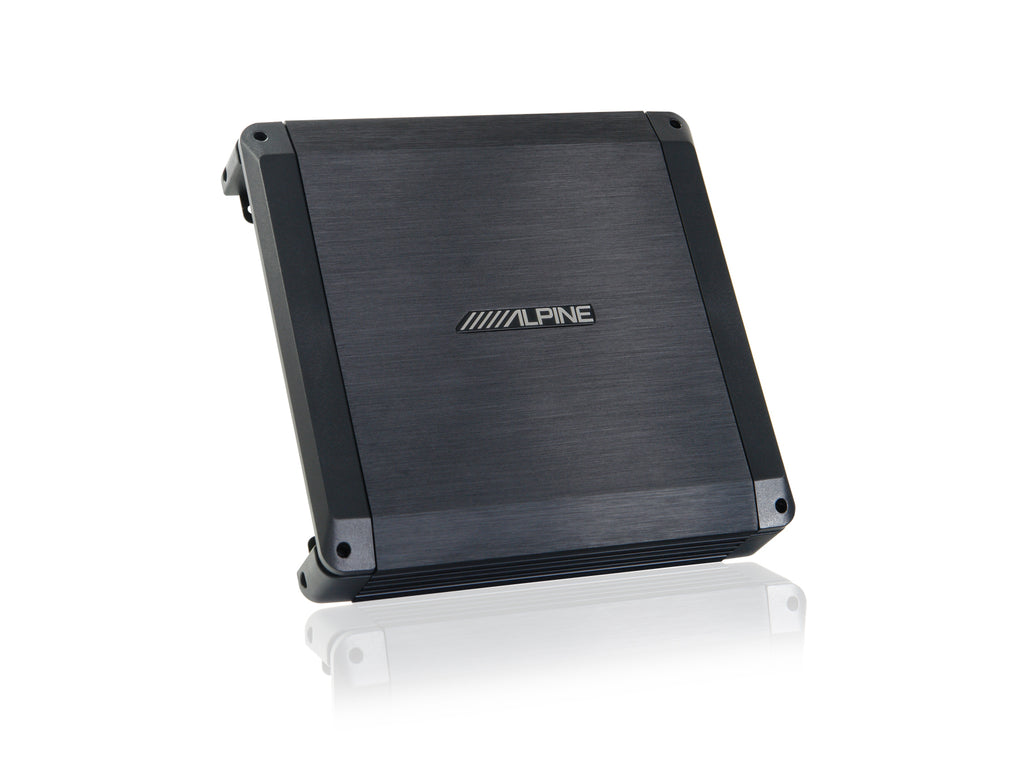

Alpine, BBX-T600

Alpine

€89,00



2-CHANNEL AMPLIFIER

Designed for Europe

This new BBX amplifier gives you Alpine power performance at an amazing price. And they're designed to fit easily in virtually any system.

High Power, Great Value

This amp delivers high output power and exceptional performance for their class. A great way to expand your sound system is on a limited budget.

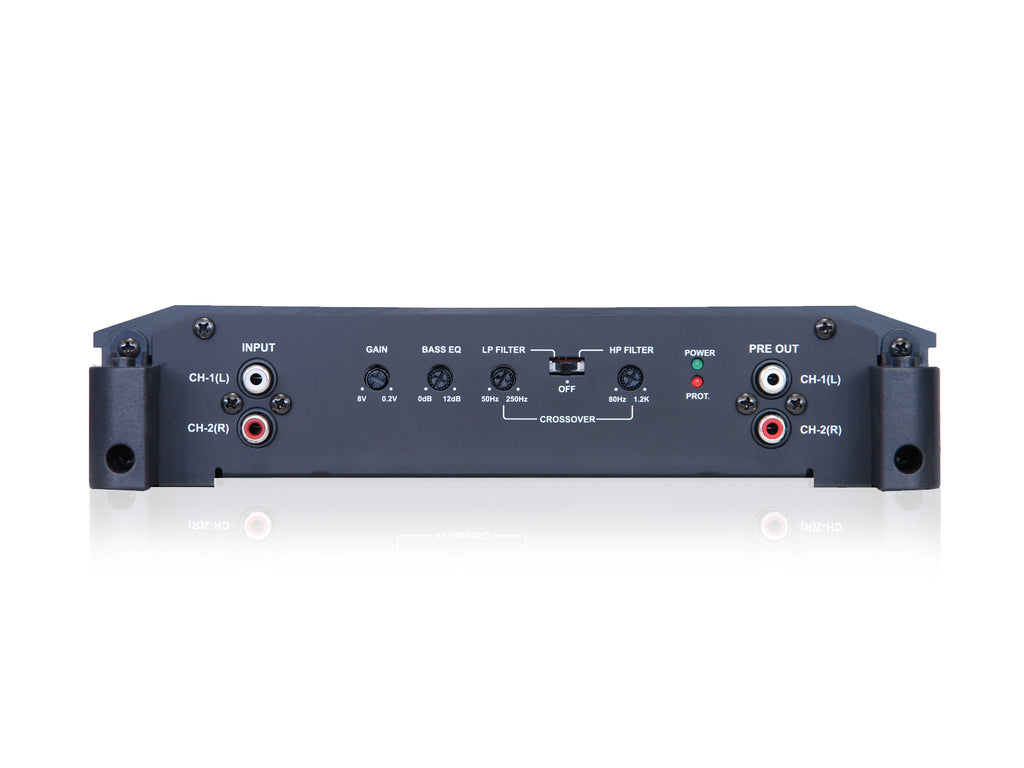

High Pass and Low Pass Filters

These two filters let you set the frequency points for the high, mid and bass ranges to match your speakers and ensure optimum efficiency.

Bass EQ for Best Bass

Performance With Bass EQ, you can maximize the performance of your system and get even more powerful bass.



FEATURES

Install

  • Terminal Layout: Two-Sided
  • Screw Mount / Wire Cover: Integrated Wire and Mounting Screw Terminals

General

  • Amplifier Type: Class-A / B
  • Channel Design: 2/1 Channel
  • Thermal Control: Thermal Management Control
  • Power Supply: DC-DC PWM Power Supply
  • Power Supply Design: MOSFET Power
  • Current Protection: Over-Current, Over-Voltage and Thermal Protection
  • Crossover: Variable Low-Pass / High-Pass
  • Green / red Status LED
  • 1 pair RCA pre-inputs
  • 1 pair RCA pre-outputs

SPECIFICATIONS

Max Power Output Ratings

  • Total Max Power: 300W

RMS Power Ratings

  • Per Channel into 4ohms (≤1% THD + N): 2 x 50W
  • Per Channel into 2ohms (≤1% THD + N): 2 x 70W
  • Bridged into 4ohms (≤1% THD + N): 1 x 130W

Sound Tuning

  • Crossover Frequency (Variable, OFF / LPF / HPF Selectable)
  • 1/2 Ch: LP: 50Hz to 250Hz HP: 80Hz to 1.2kHz
  • EQ (Equalizer): Bass EQ Fixed Frequency 45 Hz, Q = 0.5, Variable Gain 0dB to + 12dB

Dimensions

  • Footprint: 250 mm x 52 mm x 240 mm

General

  • Power Requirements: 14.4 V DC (11 V to 16 V)
  • Input Sensitivity: 0.2 - 8.0 V
  • Frequency Response: 5 Hz - 50 kHz (+0, -3 dB)
  • Speaker Impedance: 4 or 2 Ω
  • Signal to Noise: S / N Ratio (IHF A Weighted, Reference: rated power into 4ohms) 95 dB
  • Weight: 1.9 Kg
