Mercedes Benz C Class C180 C200 C260 MB W204 W205 S204 W212

Mercedes Benz C Class C180 C200 C260 MB W204 W205 S204 W212
Mercedes Benz C Class C180 C200 C260 MB W204 W205 S204 W212 Mercedes Benz C Class C180 C200 C260 MB W204 W205 S204 W212 Mercedes Benz C Class C180 C200 C260 MB W204 W205 S204 W212 Mercedes Benz C Class C180 C200 C260 MB W204 W205 S204 W212 Mercedes Benz C Class C180 C200 C260 MB W204 W205 S204 W212 Mercedes Benz C Class C180 C200 C260 MB W204 W205 S204 W212 Mercedes Benz C Class C180 C200 C260 MB W204 W205 S204 W212 Mercedes Benz C Class C180 C200 C260 MB W204 W205 S204 W212 Mercedes Benz C Class C180 C200 C260 MB W204 W205 S204 W212

GreenYi

€80,00



← Previous Product Next Product →

Specifications

  • Hign-concerned Chemical
    None
    Guiding Line
    Yes
  • Lens Material
    Glass
    Length of Video Cable
    6M
  • Shell Material
    Plastic
    Wire or Wireless
    Wire
  • Alarm Type
    Rear Side,ACCESSORIES,Vehicle Backup Cameras
    Brand Name
    GreenYi
  • Origin
    Mainland China
    Viewing Angle
    170°
  • Material
    ABS
    Fit For
    For Mercedes Benz C Class W204 C180 C200 C260
  • Lens Angle
    170 degree fisheye lens
    Night Vision
    Starlight Night Vision
  • Pixel

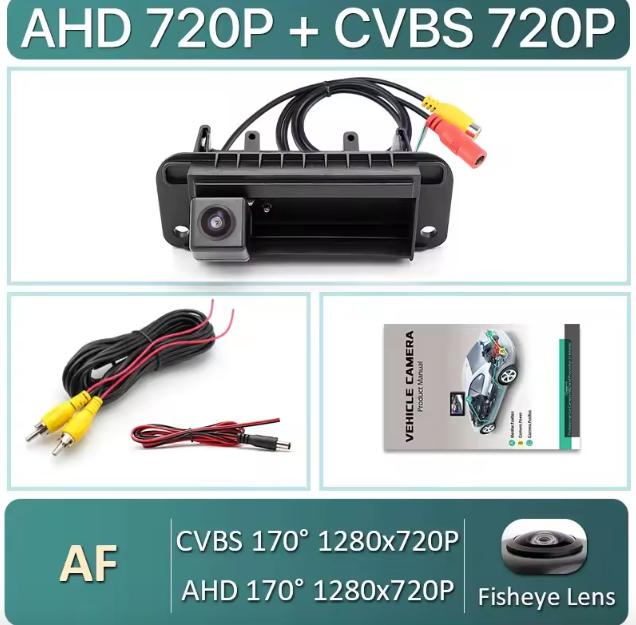

    AHD 1080P or 720P Optional
    Model
    LS8015

Item guides & documents

User manual (PDF)
View

Description

Report Item

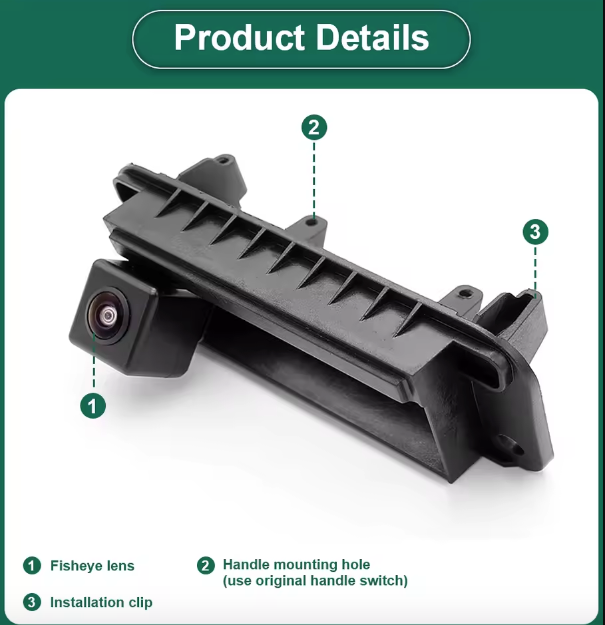

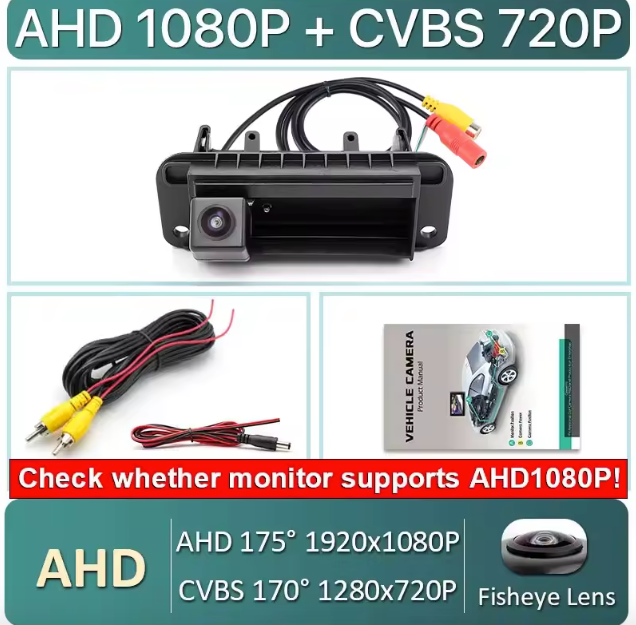

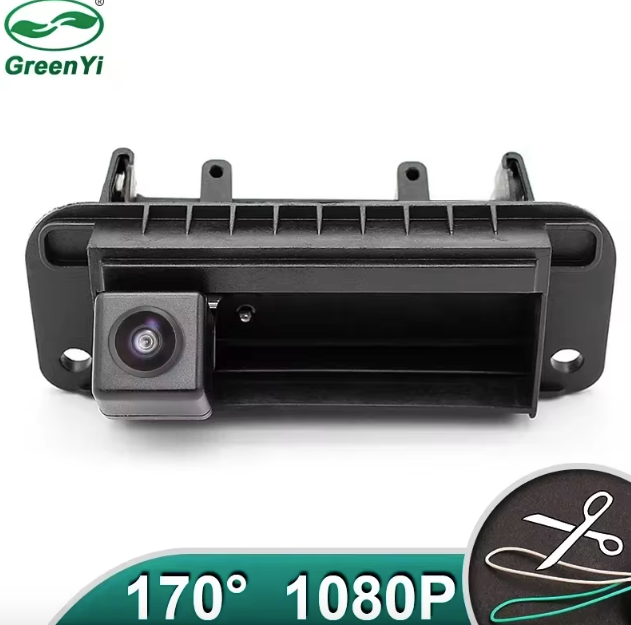

GreenYi HD AHD 1080P Vehicle Reverse Backup Trunk Handle Camera For Mercedes Benz C Class C180 C200 C260 MB W204 W205 S204 W212

* AHD technology is High-definition video signals, it adopts advanced Y/C signal separation and filtering technology, bright color separation, signal filtering, 3D noise reduction technology, higher image clarity and better image reproduction.
* Highly integrated 2053HD chips, Max HD 1080P Pixel. 170 degrees 6 Glass Fisheye Lens. Zero-delay front-end data is not encoded and compressed to the back end, Full real-time, High fidelity.
* The Camera support both AHD and CVBS video signal, it can work with both AHD Android monitors and all CVBS TFT monitors.

* Chips components : HD Sony/OV2053HD
* Viewing angle: 155~175 Degrees Visible Range .
* Effective pixels : CVBS:1280x720P (NTSC),
* AHD: 1920x1080P (PAL) or 1280x720P (NTSC).
* Signal format: NTSC or PAL
* Image resolution: 92W/200W pixels
* Video output: AHD Video Signal or CVBS Signal .
* Night Vision: Starlight Night Vision. The visible distance is greater than 10 meters.
* Night Vision Image : Automatic Gain Control, Auto White Balance, Auto Backlight Compensation
* Lens : 14/16MM Fisheye 6 glass Lens .
* Waterproof : IP68 / IP69
* Working power supply: DC12V~24V, 2A
* Working temperature: -30 °C ~ +70°C
* Maximum power: 3W

Tip:

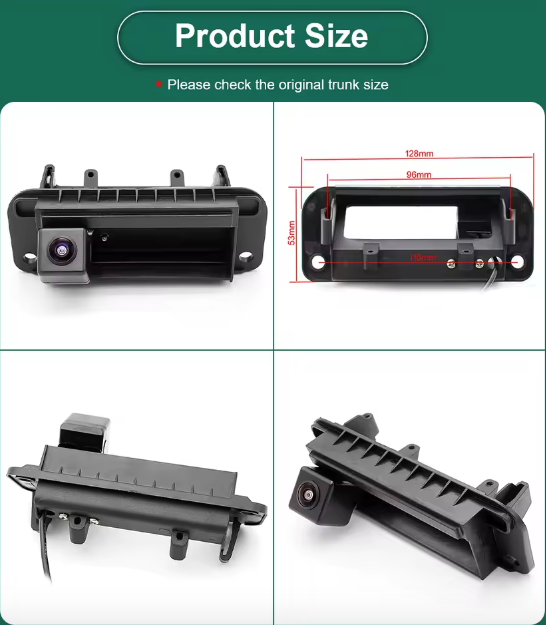

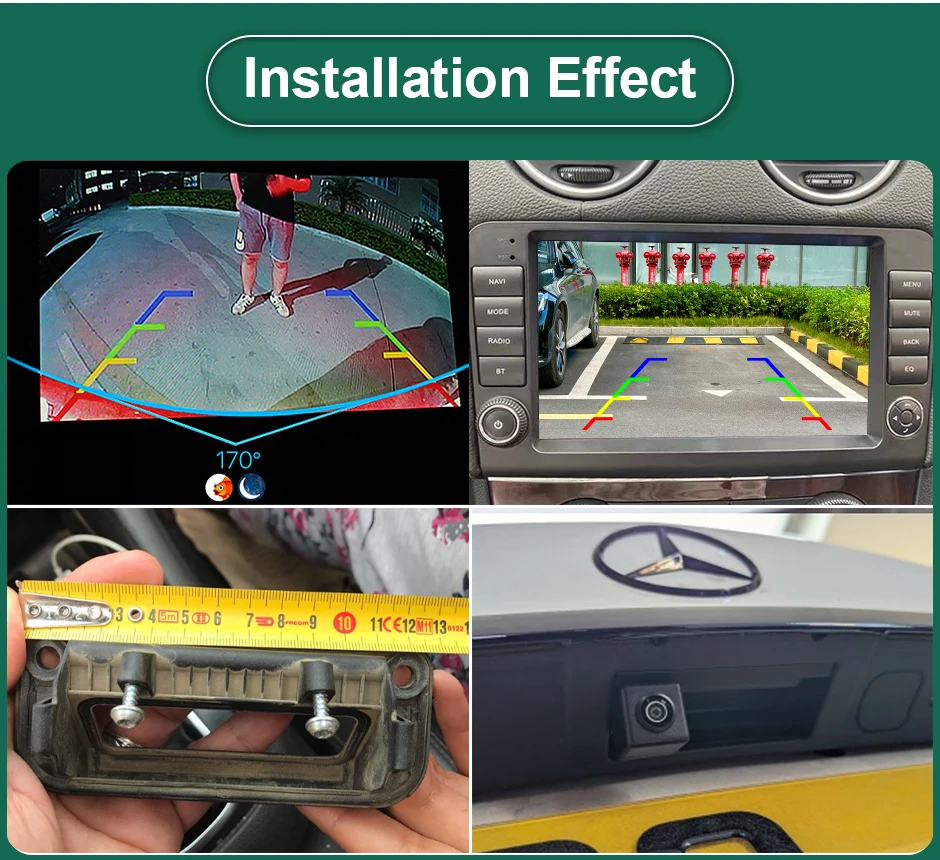

1. Because there may be slight differences between cars produced in different countries, please check the size before buying.

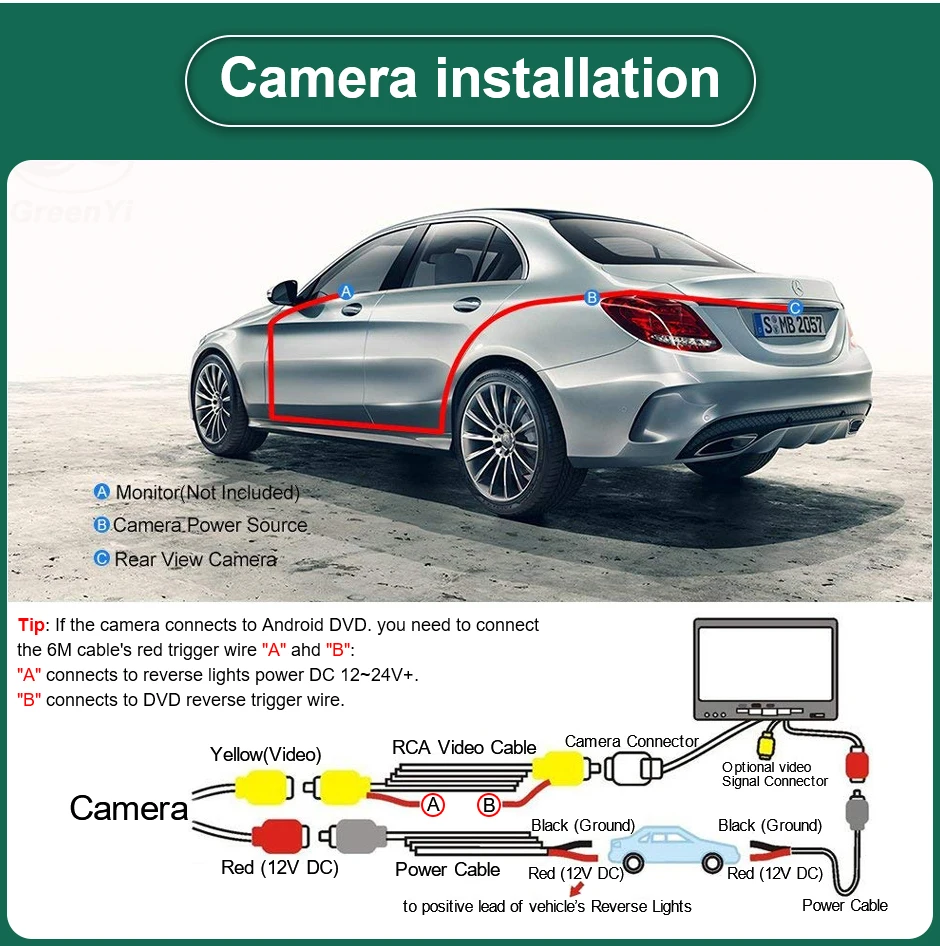

2. If your monitor can not support AHD video signal, please Cut the white wire change to CVBS video signal, please re-connect all cables.(The trajectory camera only supports AHD video signal)

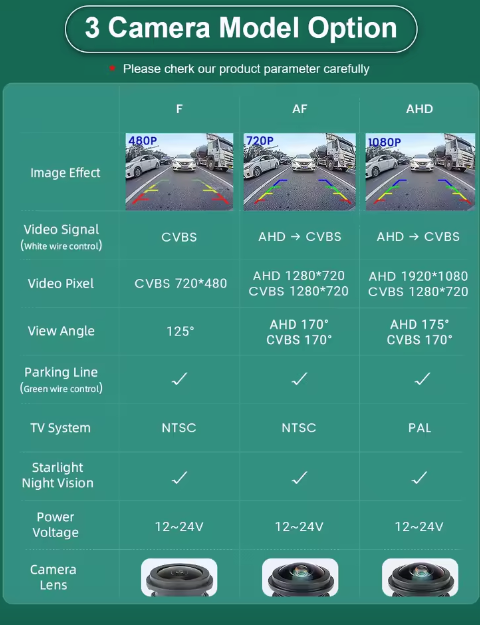

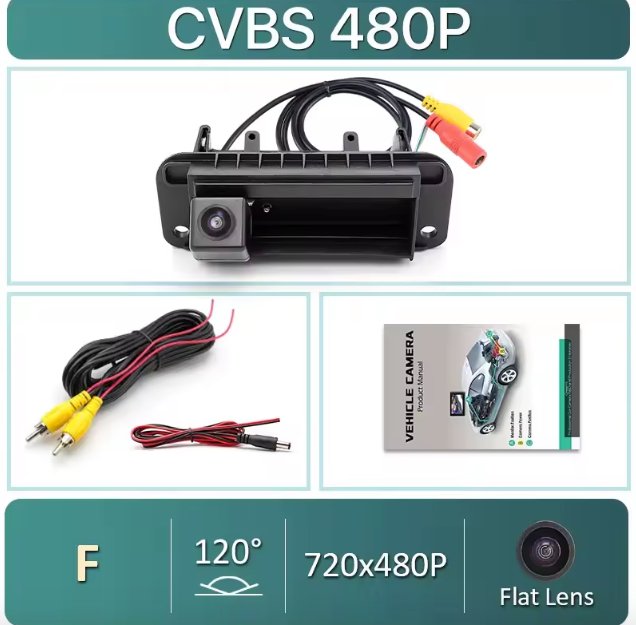

3. Optional "F" only is CVBS 7080 cheap Chips . it is 120 degree plastic flat glass lens, suitable for old android dvd and and monitor .
4. When connecting the camera with a DVD player, and it does not work properly, please check if the DVD reverse trigger wire is correctly connected.

For Mercedes Benz C Class C180 C200 C260 MB W204 W205 S204 W212 2011-2013
