Home > Parking sensors and cameras > Rear view cameras

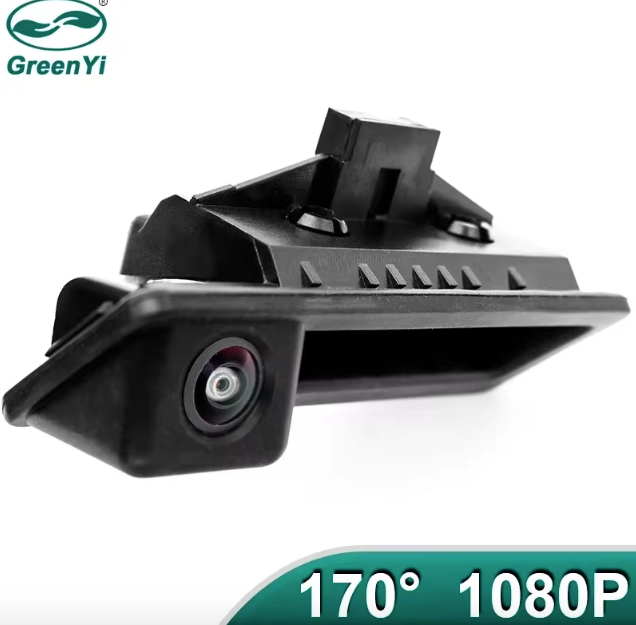

BMW E60 E39 E90 E82 E61 X1 E84 X5 E70 E92 E91 3/5 Series E88 E93 X6

BMW E60 E39 E90 E82 E61 X1 E84 X5 E70 E92 E91 3/5 Series E88 E93 X6
BMW E60 E39 E90 E82 E61 X1 E84 X5 E70 E92 E91 3/5 Series E88 E93 X6 BMW E60 E39 E90 E82 E61 X1 E84 X5 E70 E92 E91 3/5 Series E88 E93 X6 BMW E60 E39 E90 E82 E61 X1 E84 X5 E70 E92 E91 3/5 Series E88 E93 X6 BMW E60 E39 E90 E82 E61 X1 E84 X5 E70 E92 E91 3/5 Series E88 E93 X6 BMW E60 E39 E90 E82 E61 X1 E84 X5 E70 E92 E91 3/5 Series E88 E93 X6 BMW E60 E39 E90 E82 E61 X1 E84 X5 E70 E92 E91 3/5 Series E88 E93 X6 BMW E60 E39 E90 E82 E61 X1 E84 X5 E70 E92 E91 3/5 Series E88 E93 X6 BMW E60 E39 E90 E82 E61 X1 E84 X5 E70 E92 E91 3/5 Series E88 E93 X6 BMW E60 E39 E90 E82 E61 X1 E84 X5 E70 E92 E91 3/5 Series E88 E93 X6

GreenYi

€80,00



← Previous Product Next Product →

Specifications

  • Hign-concerned Chemical
    None
    Guiding Line
    Yes
  • Lens Material
    Glass
    Length of Video Cable
    6M
  • Shell Material
    Plastic
    Wire or Wireless
    Wire
  • Alarm Type
    Vehicle Backup Cameras,ACCESSORIES,Rear Side
    Brand Name
    GreenYi
  • Origin
    Mainland China
    Viewing Angle
    170°
  • Material
    ABS
    Pixels
    AHD 1080P or 720P Optional
  • Video Signal
    AHD / CVBS Optional
    View Angle
    170 Degree Optional
  • Lens
    Fisheye 6 Glass Lens Optional
    Night Vision
    Automatic Gain Control, Auto White Balance, Auto Backlight Compensation
  • Power
    DC 12V~24V, 2A
    Waterproof
    Support
  • TV System
    NTSC or PAL
    Chips
    HD Sony/OV2053HD
  • Video Cable Material
    Pure Copper
    Working Temperature
    -30°C ~ +70°C
  • Maximum Power
    3W
    Model Number
    LS936

Item guides & documents

User manual (PDF)
View

Description

Report Item










Tip: because there may be slight differences between cars produced in different countries, please check the size before buying:


Fit for:

BMW BMW E60 E39 E90 E82 E61 X1 E84 X5 E70 E92 E91 3/5 Series E88 E93 X6

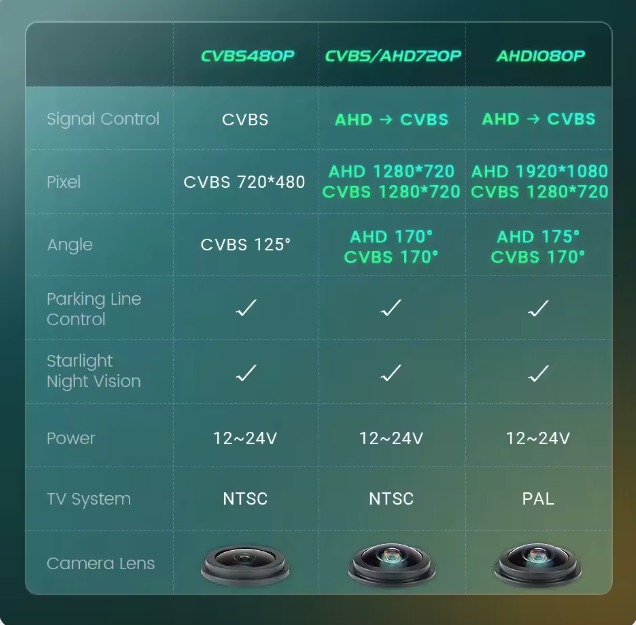

3 Cameras Style Optional





AHD1080P Camera


Analog High Definition Technologie






170° Wide Angle


Fisheye Lens - Real 170°






Top Starlight Night Vision


Starlight night vision function allows the camera to be used properly even at night.






Support Waterproof


The camera is filled with waterproof silicone, Effective chip protection,
IP68-Rated for Use in Extreme Conditions






Pure Copper 6m Video Cable


Compared to copper-clad aluminium cables, data is transmitted in pure copper cables with less signal loss.






Integrated Step-down Module


Support DC12V~24V,
Low power consumption, cable never hot, reduce fire risk.




Tips, About AHD Style: Adjustment to AHD signal via monitor settings is required before mounting the camera

Go to Car settings >> Factory settings >> Reverse (picture) settings >> Select AHD

If your monitor don't support AHD signal, please cut the white wire and change to CVBS signal.

If you don't need camera parking line, please cut the green wire.

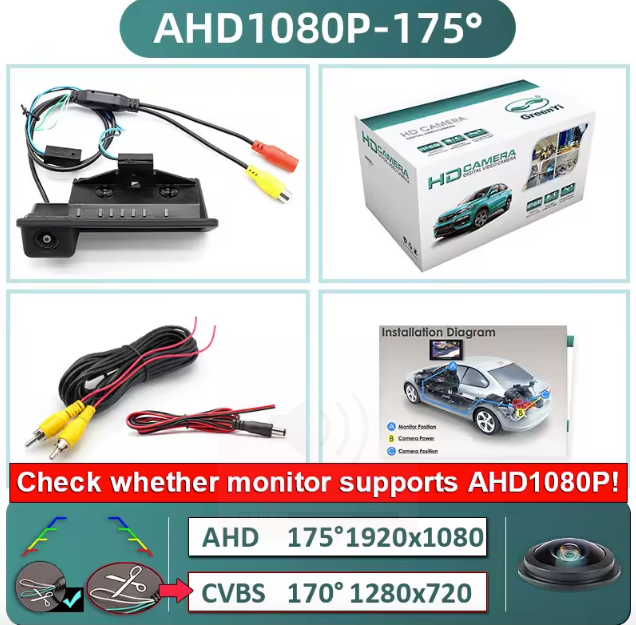

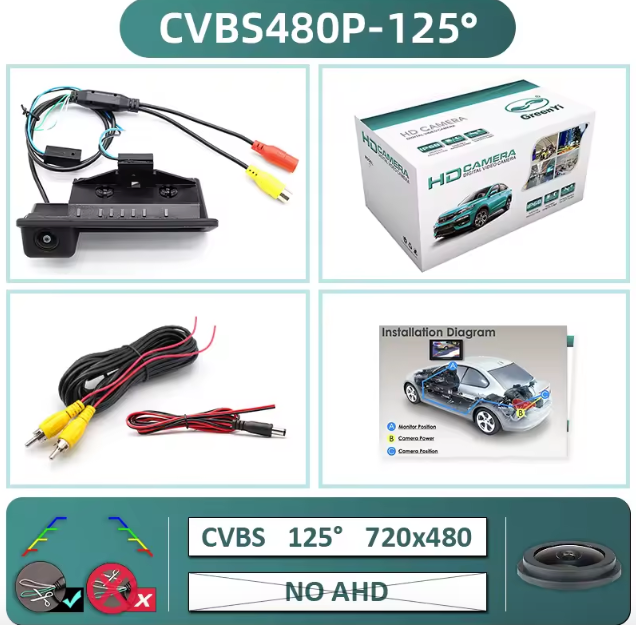

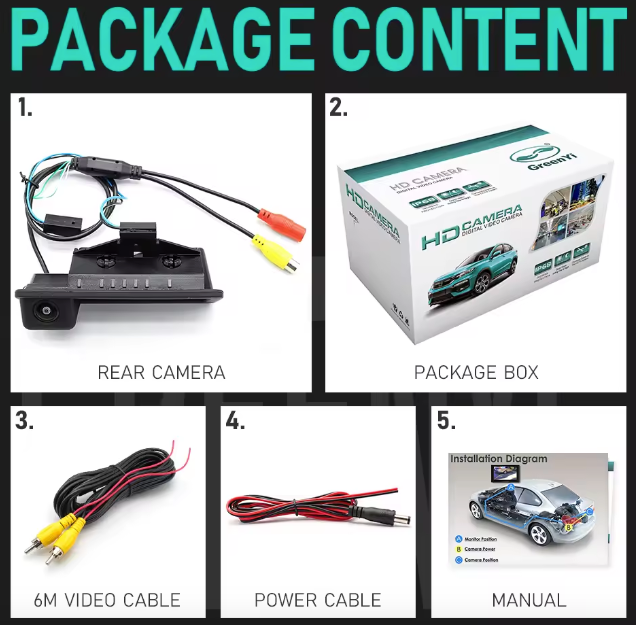

Package list





Installation Diagram
