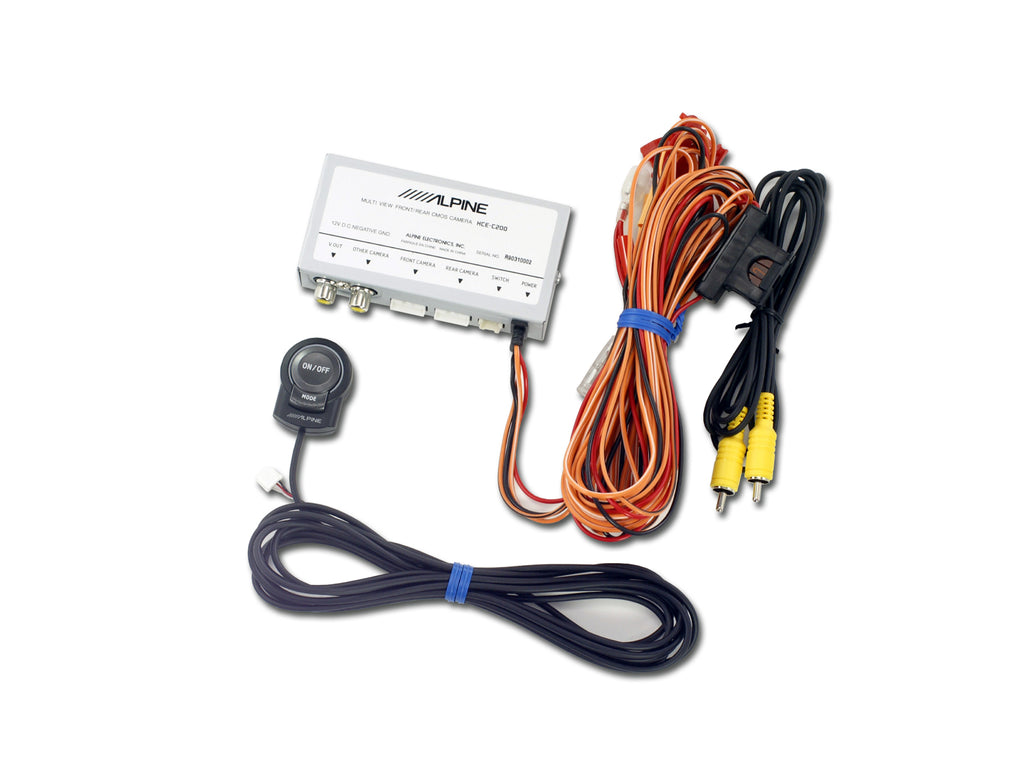

Alpine, KCX-C200B

Alpine

€49,00



Dual Camera Interface Block

This unit allows you to connect two or more Multi-View cameras to the RCA input of the Device.

Features

General

  • Camera accessory for direct connection camera HCE-C252RD and HCE-C257FD
  • Enables connection of one or two Multi-View cameras to screens with RCA input
  • Supports power supply for direct cameras
  • Required if you want front and rear camera
  • Includes camera view on / off of front camera and view mode select switch

Specifications

General

  • Output Image: Normal image, CVBS (NTSC Video signal) 16: 9 Image output for wide-screen
  • Image Output impedance: 75 Ohm (1Vp-p)
  • Power Requirement: 12 V.DC
  • Negative Ground
  • Power Consumption: Less than 1.7W (12V)
  • Operating Temperature: -30 ° C to + 80 ° C
  • Weight Power Section: 270g (including cable)
  • Weight Switch Section: 50g (including cable)

Dimensions:

  • Power Unit: 100 x 50 x 25mm
  • Switch Section: 29 x 35.5 x 13.6 mm
  • Power Unit Cable: 2m / 6m
  • RCA Extension Cable: 2m
  • Switch Cable: 3m
