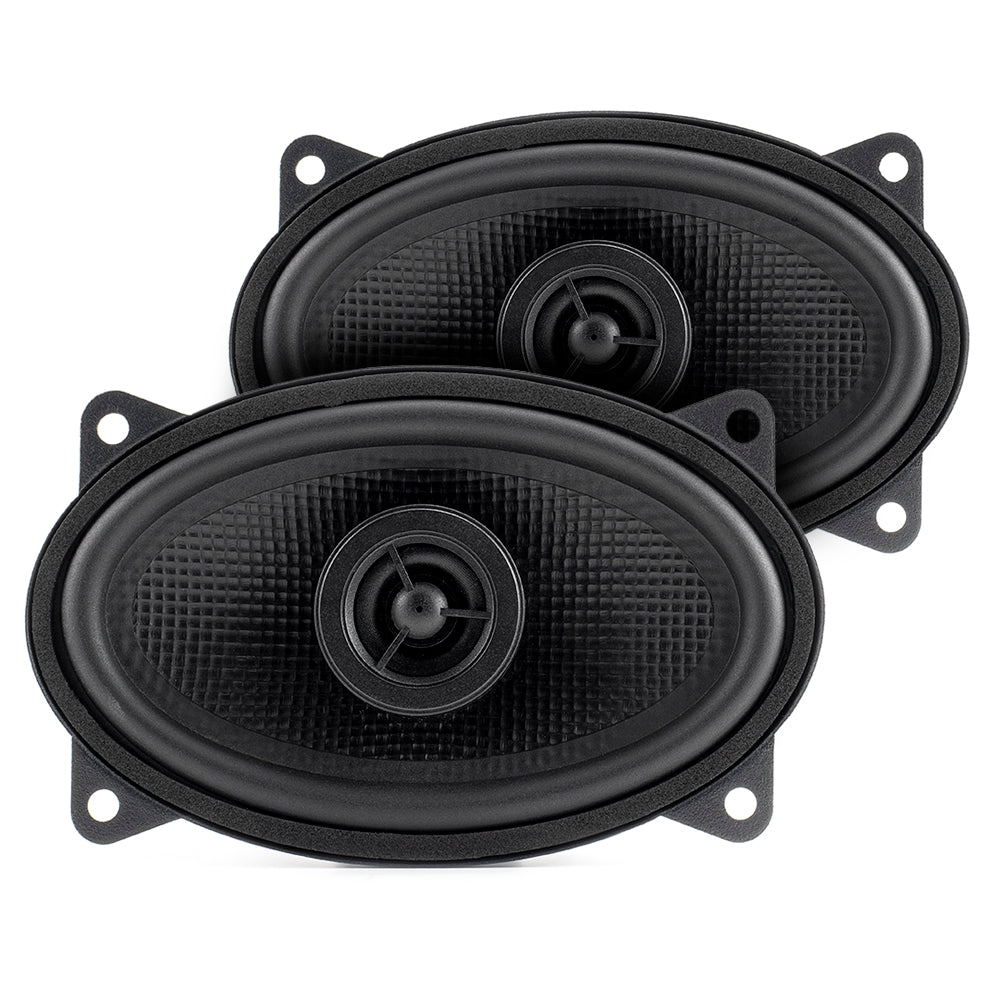

Ampire CE460
With this new AMPIRE 4''x 6'' coaxial loudspeaker, sound-degrading partial vibrations can be virtually eliminated thanks to its patented CIPP cone membrane. In addition, audibly deeper bass reproduction has been achieved through the use of ISD technology.
SCOPE OF DELIVERY
2 speakers
TECHNICAL DATA
- Nominal diameter 90x150mm (4" x 6")
- Fs 88Hz
- VAS 4.5 liters
- Qts 0.576
- Qes 0.816
- Qms 1.958
- Re 3.7 Ohm
- Z 4 Ohm
- Le 0.60mH
- SPL 88dB
- Mms 5.93g
- Xmax 2mm
- Sd 76.0cm²
- Vd 15,2cm³
- D 9.84mm

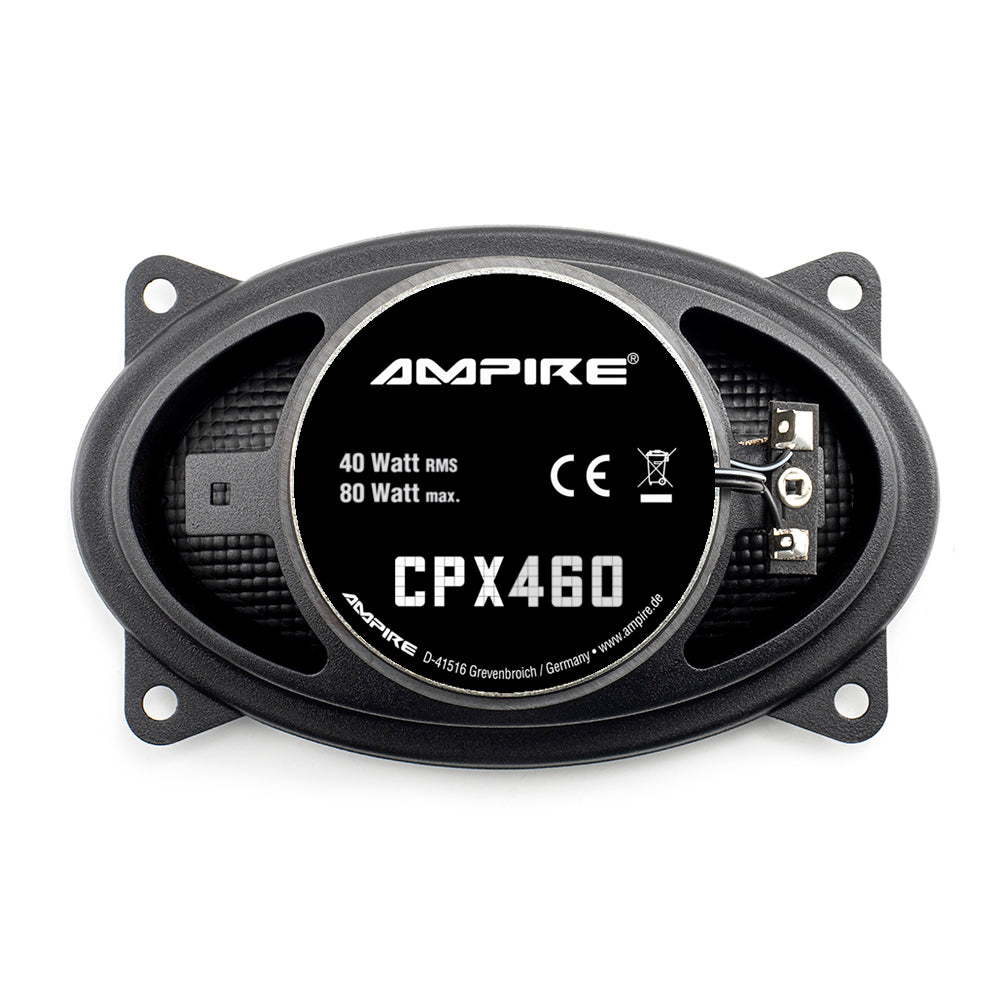

- Pe 40 Watt RMS
- Pe 80 Watt max.

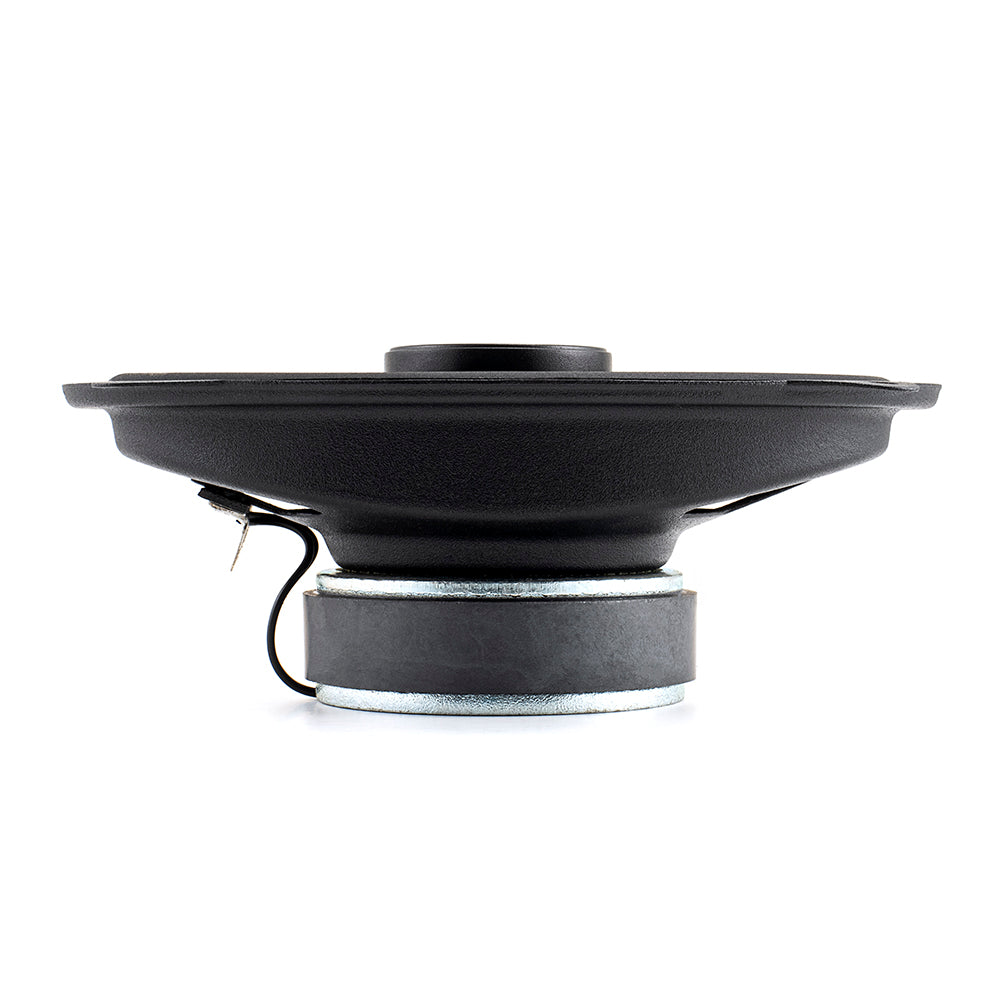

- Installation depth 50mm
- magnet diameter 80mm
