Lightbar VX250-CB

XENON OÜ

€89,00 €109,00
SKU: LEDDL117-CB





Bringing light to life with OSRAM LEDriving driving and working lights

Considerable foresight on dark country roads, forest paths, off the beaten tracks, off-road and on-road- this can be achieved with the OSRAM LEDriving Lightbar VX250-CB. With its 24 powerful, high-performance long-life LEDs, the OSRAM LEDriving Lightbar VX250-CB has a range of up to 170 meter and thus offers the driver impressive foresight on-road and off-road. Even in dim light and reduced visibility due to external environmental influences, the OSRAM LEDriving Lightbar VX250-CB with up to 6000 Kelvin can provide conditions similar to daylight. The power package with up to 2100 lumens of luminosity scores with highest optical efficiency and homogeneous light distribution. This results in the possibility of an improved view for you and the improved visibility of your vehicle by other road users, and consequently also increased safety on-road and off-road.
Whether on-road or off-road - The OSRAM LEDriving Lightbar VX250-CB impresses with its powerful performance and a long service life with up to 5000 hours. Versatile applicable, it defies numerous environmental influences and, thanks to high-quality materials such as the aluminum housing and the stable polycarbonate lens, it is particularly light and at the same time robust and resistant. The OSRAM LEDriving Lightbar VX250-CB has been tested and validated with the IP-Protection Class IP67 in our DIN certified environmental simulation laboratory for extreme external influences regarding water, dust, impacts, heat, cold and permanent vibration. The integrated driver and the thermal management system regulate the temperature of the LED Lightbar and can thus prevent damage from overheating. The polarity protection inhibits the wrong polarity of the voltage supply and can thus prevent possible damage by automatically switching off the LEDs. On-road and off-road, the OSRAM LEDriving Lightbar VX250-CB is an effective and efficient addition to your vehicle. No registration or entry in the vehicle documents is necessary for these ECE-certified LED driving lights2).
ECE reference number: 12.5
The OSRAM LEDriving Lightbar VX250-CB can be attached to cars, trucks, agricultural machinery, farm machinery, commercial vehicles, construction vehicles, caravans, off-road vehicles and quads2).
The OSRAM LEDriving VX250-CB is versatile applicable and flexible in use.

2) OSRAM LEDriving Driving Lights are approved according to ECE regulations and may therefore be installed and operated on public roads. Please note: Special installation regulations apply. In addition to ECE approval of the product, individual special requirements and legislation of the countries must be observed.

Technical Data

Country specific categorizations

Order reference

LEDDL117-CB

Product information

Application (Category and Product specific)

Additional high beam application

Electrical data

Nominal voltage

12/24 V

Nominal wattage

36.00 W

Test voltage

13.5 V

Photometrical data

Luminous flux

2100 lm

Color temperature

6000 K

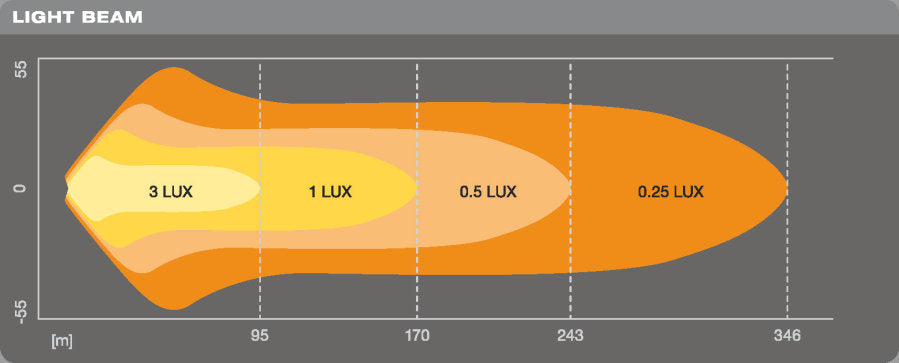

Light distance at 1lx

170 m

LED module information

Number of LEDs per module

24

Dimensions & weight

Width

80 mm

Length

306 mm

Product weight

1490.00 g

Height

62 mm

Lifespan

Lifespan Tc

5000 h

Additional product data

Connector to lamp

Open wire

Product remark

Beam Pattern: Combo

Capabilities

Technology

LED


Certificates & standards

Standards

ECE R10, R112

Approval marks – approval

E4 approval

Type of protection

IP67

Logistical data

Commodity code

851220009000
