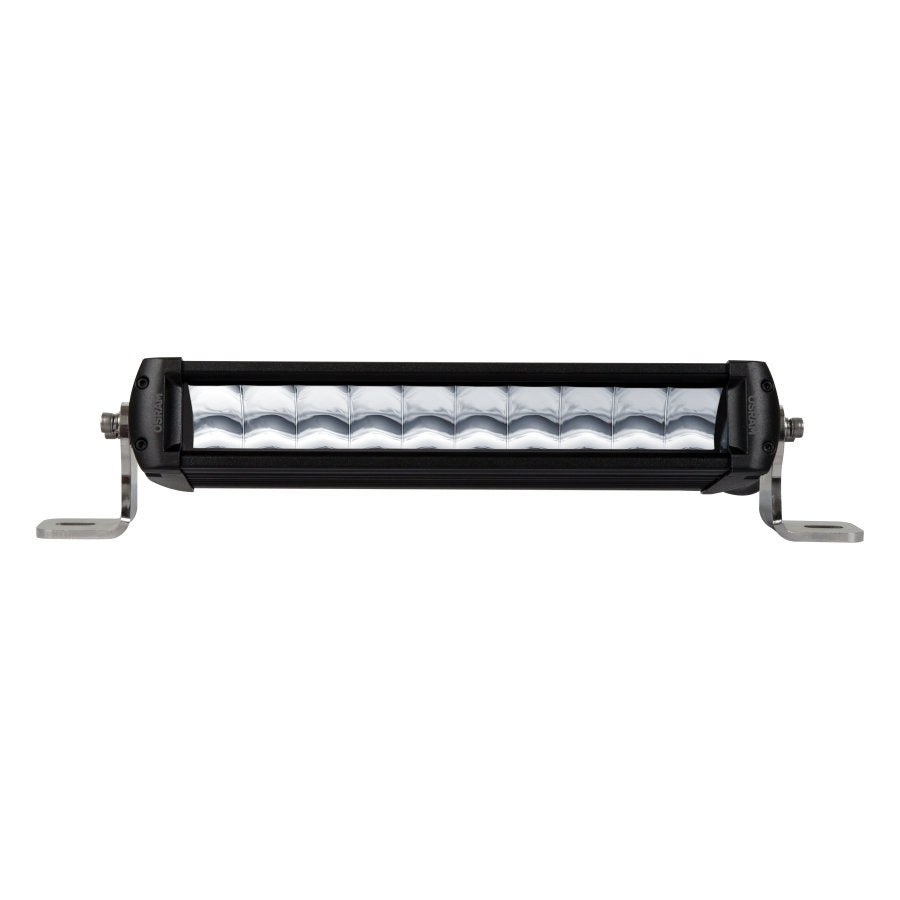

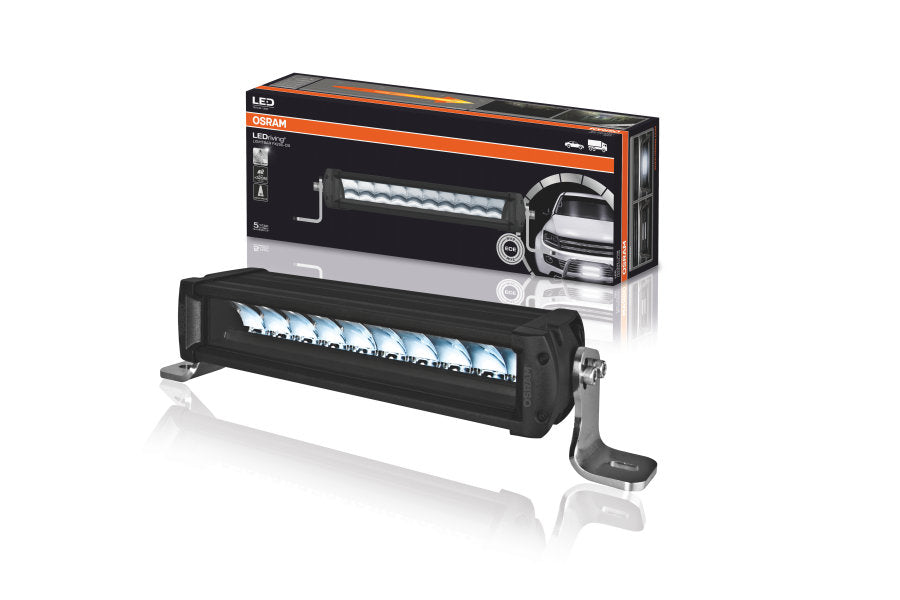

Lightbar FX250-CB

XENON OÜ

€139,00 €179,00
SKU: LEDDL103-CB





Increased brightness thanks to LED auxiliary lights for far and near field illumination

Particularly when driving on rural and dirt roads, a greater range of visibility can play a key role in ensuring safety. The LEDriving Lightbar FX250-CB is an ECE-compliant LED auxiliary light that provides additional, far field illumination on dark roads.

Even in poor visibility conditions or at dusk, the ten high-performance LEDs reach a light distance of up to 320 meters and daytime lighting conditions with a color temperature of 6000 Kelvin.
The auxiliary automotive light can be used as both a supplementary LED high beam headlight and a powerful working light. The light is fully ECE-compliant in both versions and therefore suitable for use on roads.
An intelligent reflector design diverts the light from the LEDs so that oncoming traffic is only indirectly exposed to the light. With a beam angle of five degrees, oncoming vehicles are not needlessly blinded and the light is evenly distributed.

Robust and durable thanks to superior craftsmanship
As an LED auxiliary light, the LEDriving Lightbar FX250-CB has to withstand quite a bit. Its compact housing and extremely robust polycarbonate lens can do just that. The LED bar for automobiles can stand up to the most extreme weather and environmental conditions.
What's more, the integrated driver and thermal management system ensure that the ten high-performance LEDs will not overheat. Complete polarity protection both prevents damage from excess voltage and contributes to a longer lifespan for the LED bar.

Safe and flexible both on-road and off-road

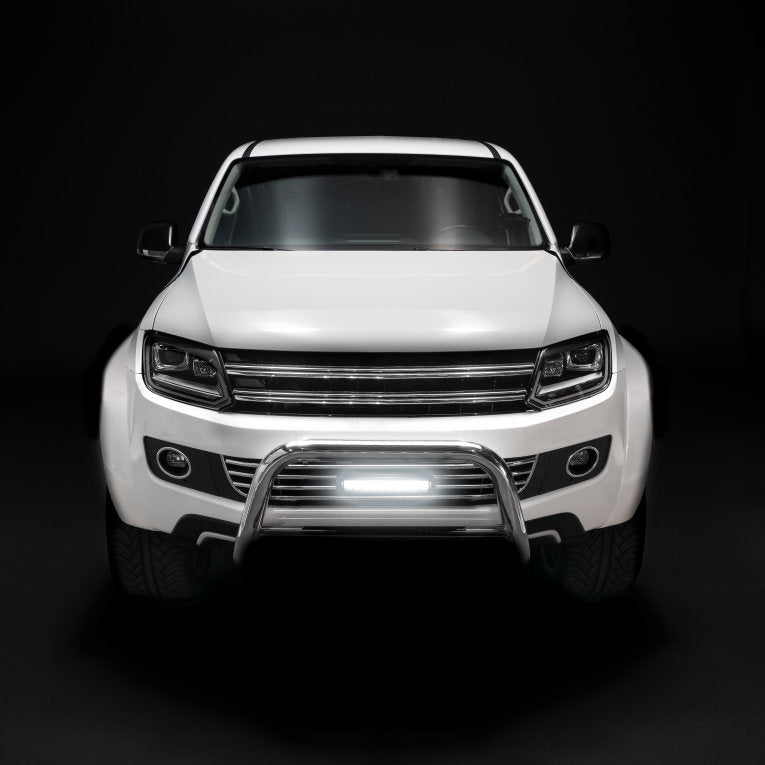

Its variability gives the LEDriving Lightbar FX250-CB a flexible range of uses. The LED lights can be installed on cars, utility vehicles, recreational and 4x4 vehicles and agricultural vehicles. Thanks to their extreme luminosity, they are also ideal as LED working lights on off-road vehicles.
The powerful 2700 lumen LED auxiliary light provides the highest optical efficiency for every application and an aesthetic, homogeneous light distribution.

Technical Data

Country specific categorizations

Order reference

LEDDL103-CB

Product information

Application (Category and Product specific)

Additional high beam application

Electrical data

Nominal voltage

12/24 V

Nominal wattage

35 W

Test voltage

13.5 V

Photometrical data

Luminous flux

2700 lm

Color temperature

6000 K

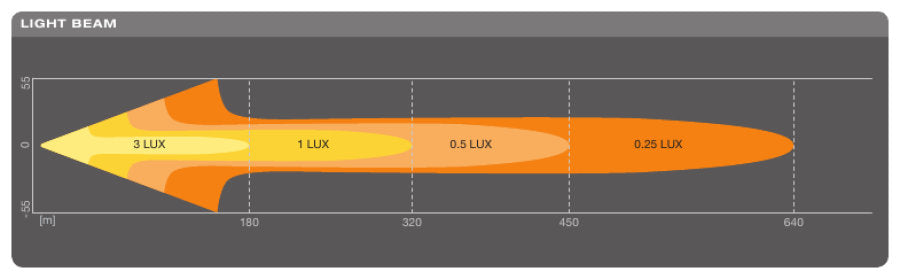

Light distance at 1lx

320 m

Dimensions & weight

Width

94.0 mm

Height

77.0 mm

Length

400.0 mm

Product weight

1200.00 g

Lifespan

Lifespan Tc

5000 h

Additional product data

Connector to lamp

DT Connector

Capabilities

Technology

LED

Certificates & standards

Standards

ECE R10, R112

Approval marks – approval

E4 approval

Type of protection

IP67

Logistical data

Commodity code

851220009000
