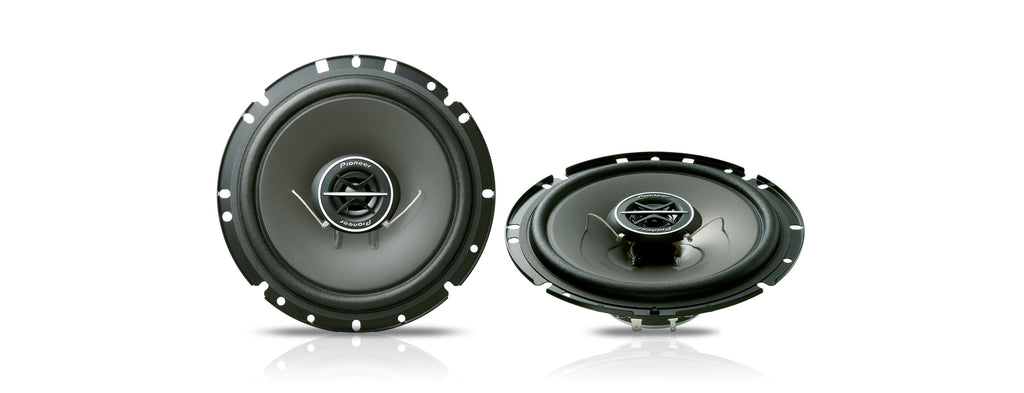

Pioneer TS-1702i
Key Features Speakers
| Frequency response: | 32 Hz - 26,000 Hz |
|---|---|
| Impedance: | 4 Ω |
| Maximum input power: | 170 W |
| Nominal input power: | 35 W |
| Sensitivity: | 90 dB |
| Series: | Custom Fit |
| Diameter Size: | 17 cm |
| Dimensions: | 165 mm x 57 mm |
| IMPP™ Composite Cone: | |
| Magnets: | Ferrite |
| Woofer material: | Polypropylene (PP) |
Other Specifications speakers
| Accessories: | Easy connector |
|---|---|
| Cut-out Hole: | 147 mm |
| Included connector for: | Renault, Opel, Volkswagen, Peugeot, Citroen, Kia, Hyundai |
| Mounting Depth: | 46 mm |
| Speaker Grill: | Not Included |
| Weight: | 0.57 kg |
Manuals
Installation Manual
| Languages | Download |
|---|---|
| English, French, German, Italian, Portuguese, Russian, Spanish | Download |
Coaxial Speakers - Featuring a built-in Tweeter and Mid Bass driver providing a well balanced combination of vocals and bass.
IMPP™ Cone - Pioneer’s rigid and lightweight Injection Moulded Polypropylene Composite (IMPP™) Cone for improved clarity and reduced distortion.
