Hertz,MLCX 2 TW.3 LEGEND

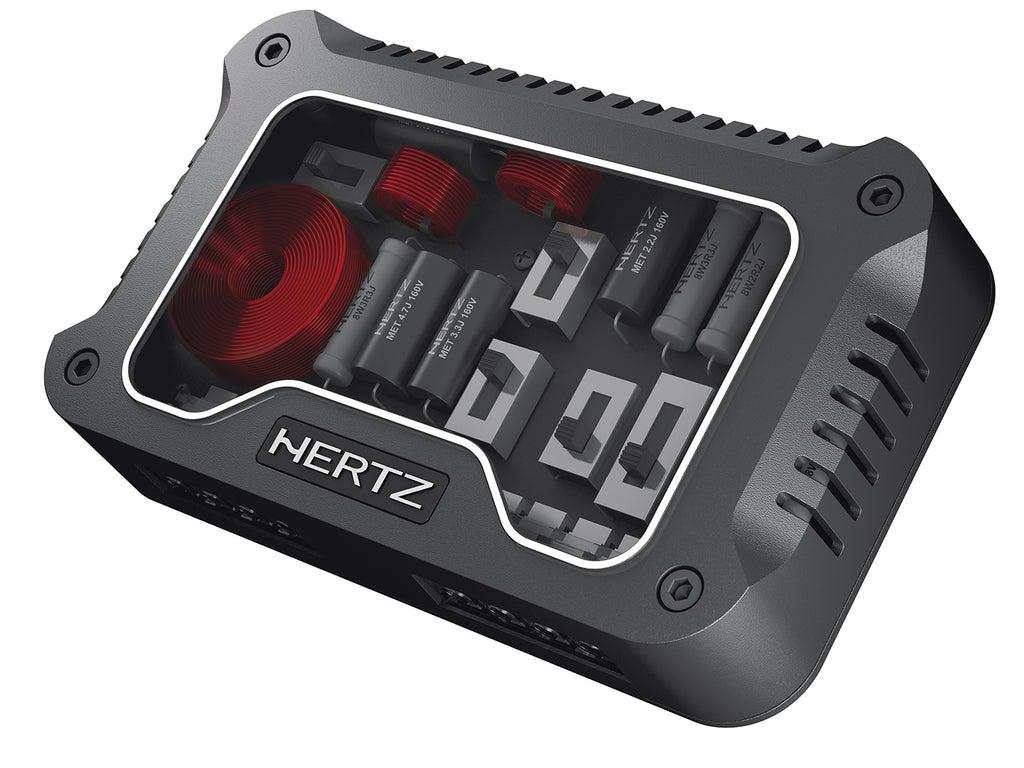

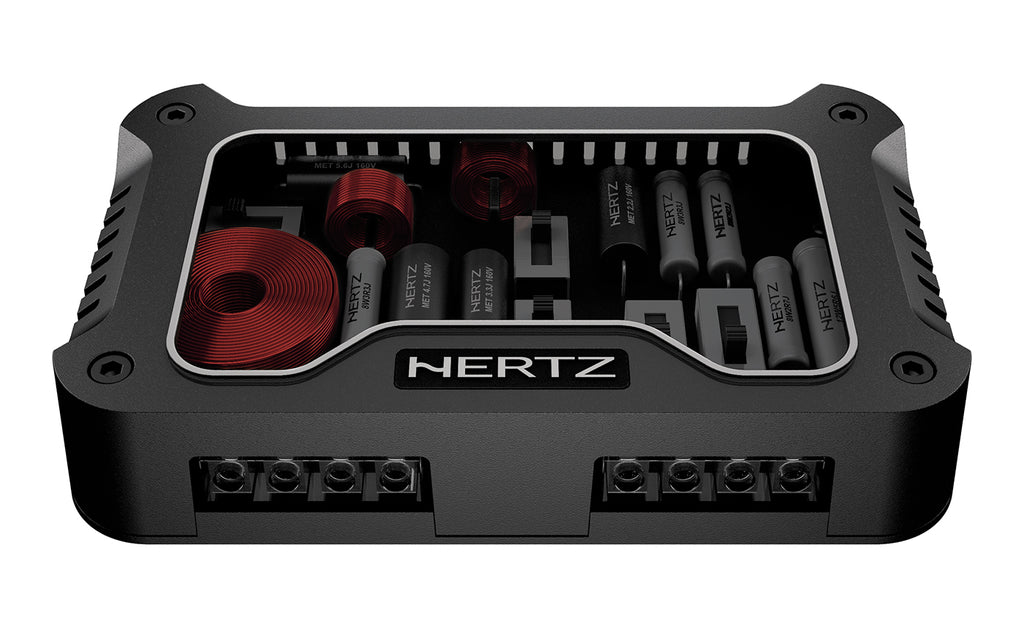

Hertz MLCX 2 TW.3 car audio crossover provides the ability to realize a bi-amplified system, that is, to connect two amplifiers, or anyway two separate channels, to the crossover, so making it possible to drive woofer and tweeter separately. The significant power increase with this configuration highlights all the features of the MLK 1650.3 Legend system, with all the advantages coming from the multi-amplification. Besides, thanks to the Mid-Contour and Hi-Contour controls, dedicated to the management of woofer cut-off frequency and tweeter cut-off frequency respectively, the cross-point can be varied. Through each of these two Contour controls, featuring a two-position selector, the system frequency response can be fine-tuned, adjusting it according to the different acoustics of the cars and the different speaker placements and, most of all, the listener can achieve their favourite sound.
| Component | Crossover |
| Power Handling - Peak W | 300 |
| Power Handling - Peak Note | 150 |
| Depth mm (in.) | 41 (1.68) |
| Adjustment |
Tweeter +2 / 0 / -2 dB |
| Weight of one component - Crossover kg (lb) | 0,57 (1.26) |
| Crossover |
Woofer Lo-pass 6 dB Oct. |
| G | 195 mm | 7.67 in. |
| H | 119 mm | 4.68 in. |
| I | 41 mm | 1.61 in. |
