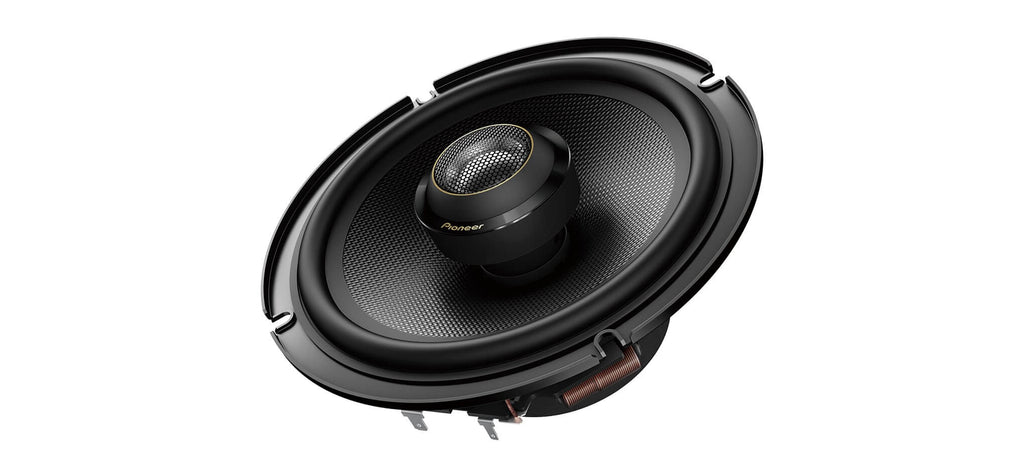

Pioneer, TS-Z65F

Pioneer

€265,00 €279,00



TS-Z65F

6.5” - 330w Max Power, 2-way, Aramid Fiber IMPP Cone, 29mm Aluminum Alloy Dome Tweeters, Designed for Hi-Res Audio - Coaxial Speaker (pair)

  • 29mm Aluminum Alloy Dome Tweeter with Vertex Drive System
  • Twaron® Aramid Fiber Construction
  • Designed for Hi-Res Audio

    Z FULL RANGE, No Compromises


    The Z is based on highly advanced technology developed by Pioneer, employing carefully selected materials and parts, benefiting from our decades of automotive loudspeaker design theory and testing ability.

    The Z is based on highly advanced technology developed by Pioneer, employing carefully selected materials and parts, benefiting from decades of automotive loudspeaker design theory and testing ability. Following Pioneer’s OPEN & SMOOTH™ sound concept, the Z series of automotive loudspeakers features smooth off-axial frequency response, superior directivity and extended frequency range engineered specifically to produce dynamic, accurate sound quality for the car. The result is a purity of sound that achieves unprecedented audio artistry.

    high res graphic with logo

    DESIGNED FOR HI-RES AUDIO

    The quality of music recordings available to listeners has evolved. Hi-Res Audio recordings contain significantly more data compared to a standard CD recording and require a loudspeaker that is capable of smoothly reproducing frequencies of 40kHz or higher. The Z speakers are designed to deliver sound that’s clearer, sharper and more complex - reproducing music that is closer to the original performance.

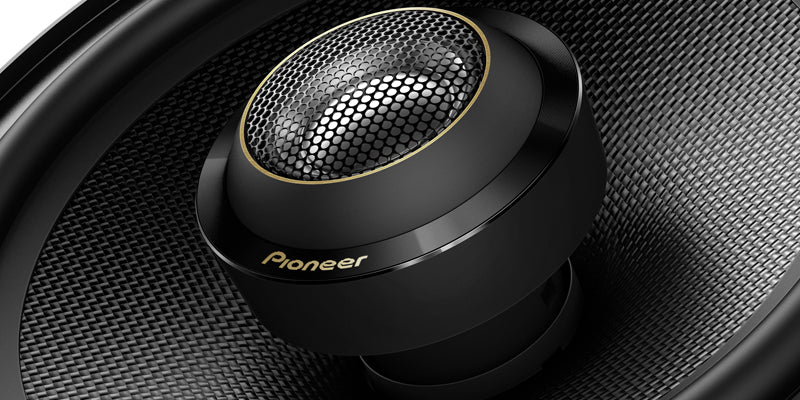

    tweeter image with a1 logo

    29mm ALUMINUM ALLOY BALANCED DOME TWEETER

    The Z tweeter’s aluminum alloy diaphragm allows the tweeter to remain pistonic and linear at ultrasonic frequencies. The unique diaphragm shape, developed using HSDOM (Harmonized Synthetic Diaphragm Optimum Method) computer analysis, accurately controls differential vibration produced by the diaphragm and improves high frequency dispersion.

    Pioneer’s Vertex Drive System improves the mechanical coupling of the voice coil and the tweeter diaphragm, reducing distortion and coloration caused by low damping and increasing power handling.


    What’s in the Box

    • (2) 2-way speakers
    • (8) 3/4" Screws
    • Warranty information
    • Instructions
    SYSTEM
    • 2-way Coaxial
    • 85 dB (+- 1.5dB)
    • 32 Hz to 96 kHz
    • 110 Watts
    • 330 Watts
    • 4 ohms
    WOOFER
    • 6.5”
    • Twaron Aramid Fiber
    • Butyl Rubber
    • Stamped Steel
    • Ferrite
    • 11.3 oz
    • 2.6”
    TWEETER
    • Balanced Dome
    • 29mm
    • Aluminum
    • Neodymium
    • 6.4 g
    • Yes
    CROSSOVER NETWORK
    • 2200 Hz
