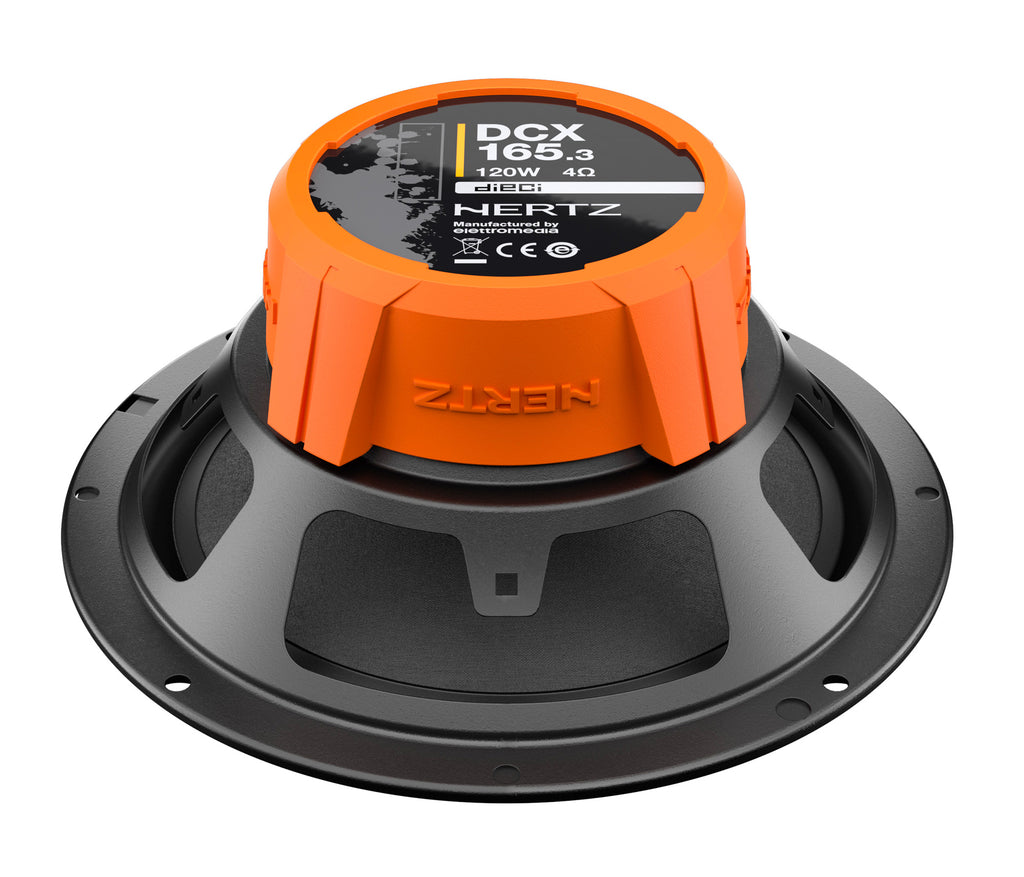

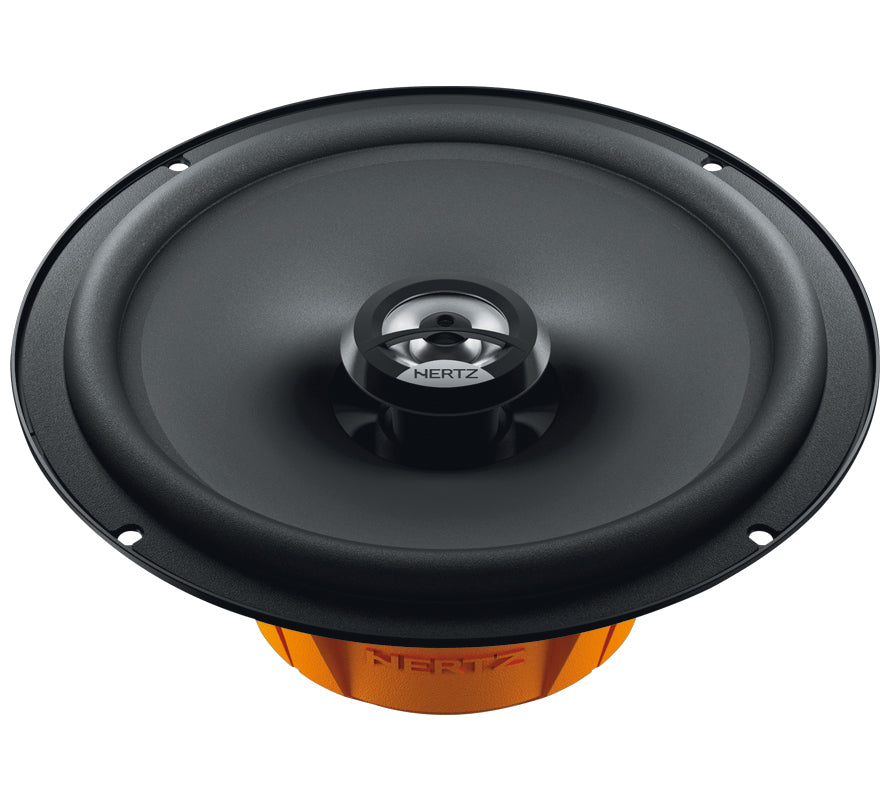

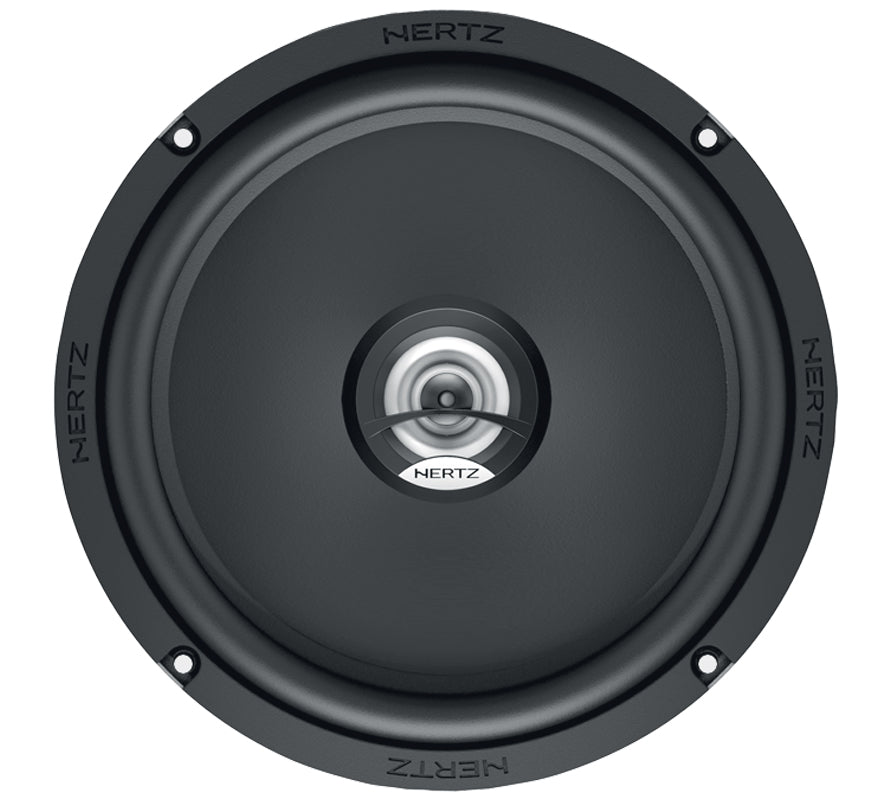

Hertz, DCX 165.3

Hertz

€52,00 €63,00



DCX 165.3165 (6.5) mm (in.) | 72 (2.8) mm (in.) | Two Way Coaxial | 120 W | 4 Ohm


To meet all installation needs, without giving up on Hertz quality and performance, Hertz DCX 165.3 car audio coaxial speaker is designed with maniacal care to provide a linear frequency response and ensure high reliability. A Neodymium magnet, PEI dome tweeter, built-in crossover, TPU (Thermoplastic polyurethane) surround and a pressed-paper cone provide the optimum ratio between installation friendliness and sound with dynamic and emotional impact.

Component Two way coaxial
Size mm (in.) 165 (6.5)
Power Handling - Continuous W 60
Power Handling - Peak W 120
Impedance Ohm 4
Depth mm (in.) 72 (2.8)
Woofer Voice Coil Ø mm (in.) 25 (1.0)
Frequency Response Hz 60 ÷ 21k
Woofer Magnet size D x d x h mm (in.) 80 x 40 x 15 (3.1 x 1.6 x 0.6)
Weight of one speaker kg (lb.) 0,77 (1.69)
Woofer Magnet High density flux ferri
Tweeter Magnet Neodymium
Cone Water-repellent pressed paper
Dome PEI
Technical Specs
D mm 135
Re Ohm 3,3
Fs Hz 68
Vas I 14,3
Mms g 11,0
Cms mm/N 0,49
BL T*m 4,0
Qts 0,85
Qes 0,96
Qms 7,54
Spl dB 93
Electro-acoustic Specs



Physical Specs

DCX 165.3

A 165 mm (6.5 in.)
B 144 mm (5.7 in.)
C 72 mm (2.8 in.)
D 64 mm (2.5 in.)
