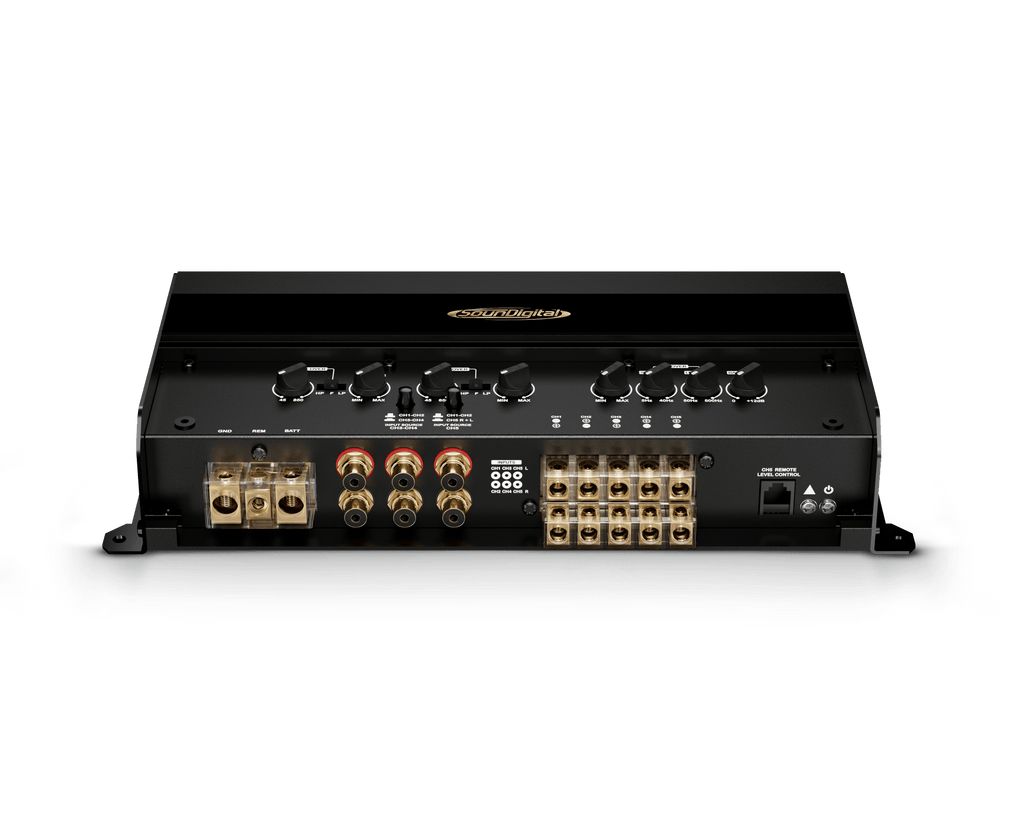

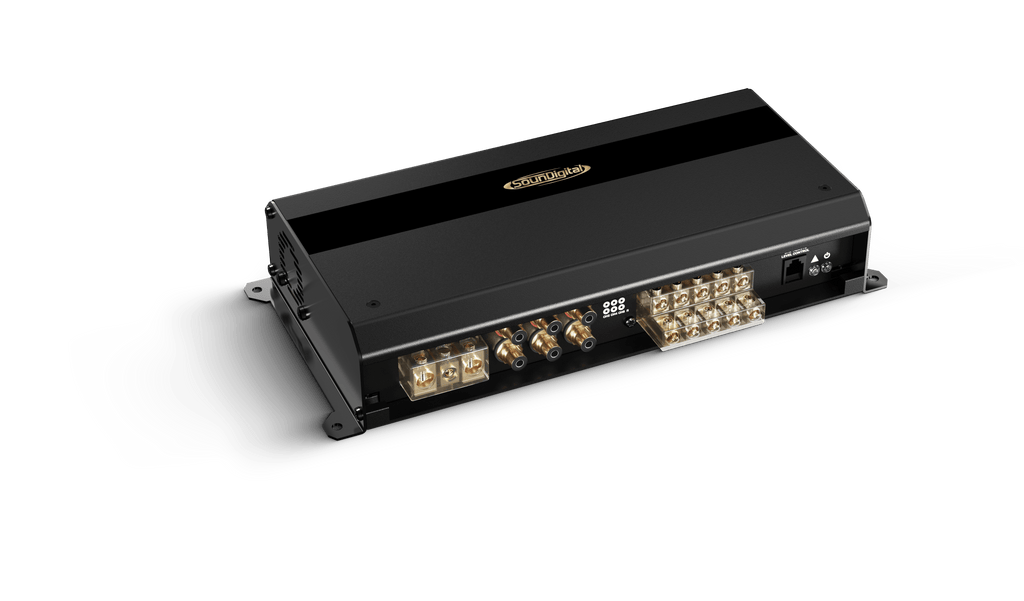

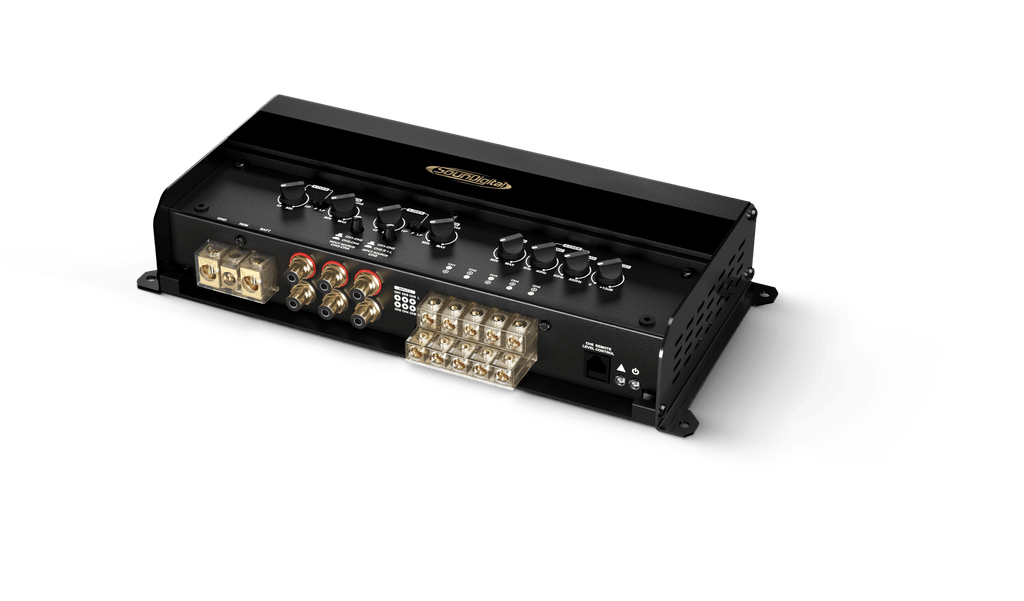

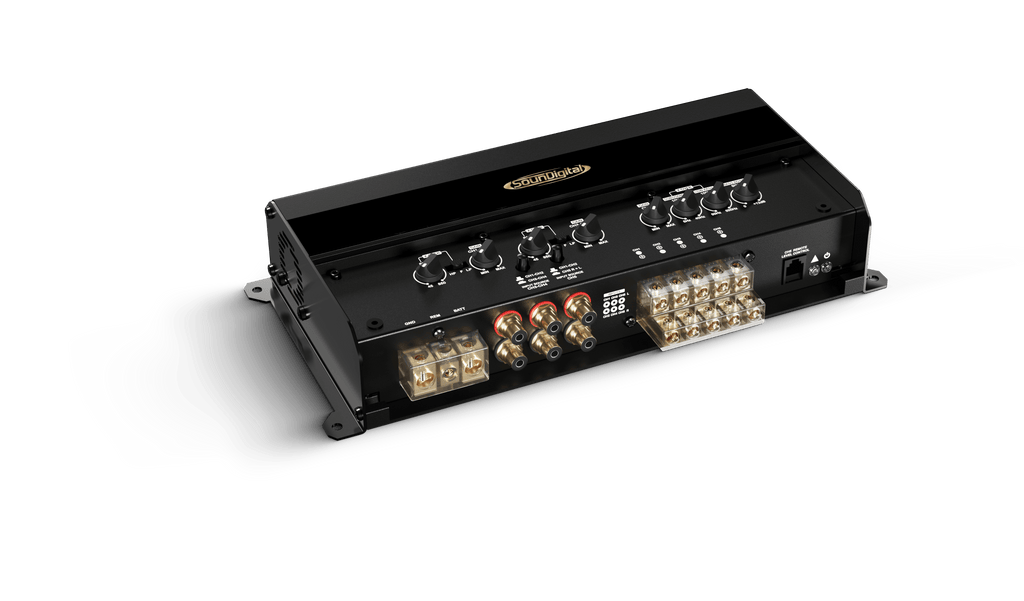

The 1500.5 GAN Founders Edition is a limited edition amplifier, created by our founder Juliano Anflor, developed to reproduce all nuances and harmonics of music with perfection. Join the audio future with our new GAN lineup and get thrilled by listening to your favorite music in a way you’ve never felt before.

• 1500.5 GAN 4 OHMS

  Power @ 4Ω: 4 x 125W RMS
  Power @ 2Ω: N/A

  SUBWOOFER: 4Ω: 1 x 660W
  SUBWOOFER: 2Ω: 1 x 1000W

  Bridge Power @ 8Ω: 2 X 250W RMS
  Bridge Power @ 4Ω: N/A



• Frequency Response (-3dB)

  5Hz ~ 65.25kHz
  SUBWOOFER: 5Hz ~ 500Hz

• Subsonic Filter (12dB/octave)

  N/A
  SUBWOOFER: 5Hz ~ 40Hz

• Low Pass Filter (12dB/octave)

  45Hz ~ 850Hz
  SUBWOOFER: 50Hz ~ 500Hz

• High Pass Filter (12dB/octave)

  45Hz ~ 850Hz
  SUBWOOFER: N/A

• Bass Boost

  N/A
  SUBWOOFER: 0dB ~ 12dB @ 50Hz

• Operating Voltage

  9V ~ 16V

• SNR

  105dB

• Input Sensitivity (RCA)

  0.4 ~ 10V

• Input Sensitivity (High Level input)

  N/A

• Current Draw (music)

  65A

• Current Draw (max.)

  130A

• Total Efficiency

  80%

• Damping Factor (@100Hz nominal impedance)

  150
  SUBWOOFER: 75

• Power Cable

  16mm² (5 AWG)

• Speaker / Subwoofer Cable

  2.5mm² (13 AWG)

• Remote Cable

  1.5mm² (15 AWG)

• Recommended Fuse* (music)

  80A

• Recommended Battery (minimum)

  80Ah

• Width

  5.9" / 15 cm

• Lenght

  11.7" / 29 cm

• Height

  2.1" / 5,4 cm

• Weight

  3.82 kg (8.42 lb)
