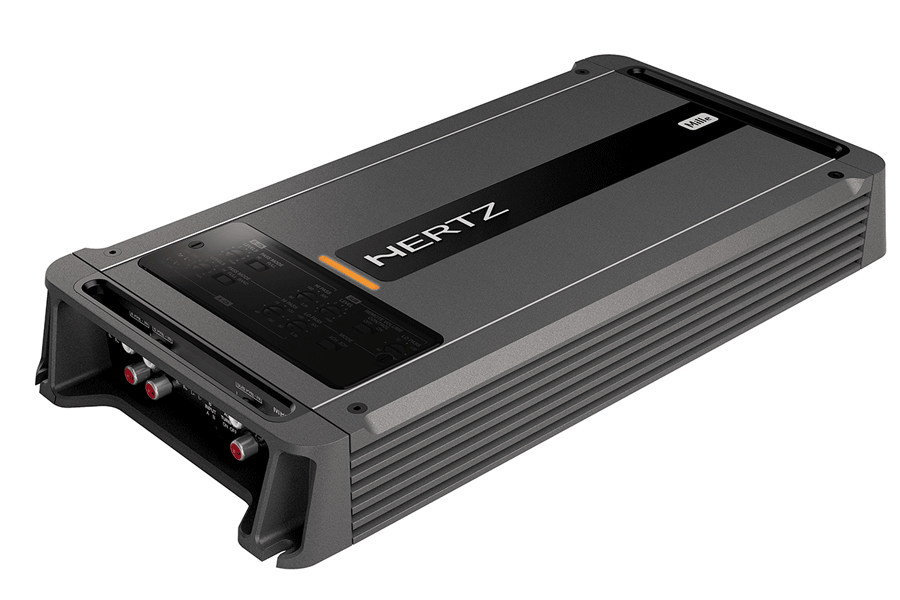

Hertz, ML Power 5
D-CLASS FIVE CHANNEL AMPLIFIER
Mille power amplifiers are born to fully enhance the outstanding performance of the Mille speakers. The new ADC (ADVANCED D-CLASS TECHNOLOGY) ensures pure listening pleasure while keeping a compact size with unmatched power efficiency. The heat sink, engineered with double technology, extrusion and aluminium die-casting, enables the Mille Power amplifiers to work constantly at full power without ever overheating, further maximizing thermal efficiency. The ultra-versatile Hertzaudio car amplifier ML Power 5 (100 W x 4 + 550 W 2 Ω) provides the ability to drive a Mille system including the subwoofer. The HRC BM (Hertz Remote Control Bass Management), low frequencies level remote control, is optional.
Specifications
| Channel mode | 5 - 3 |
|
Output Power (RMS) @ 14.4 VDC |
5 Ch 70 W x 4 + 380 W x 1 (4Ω) 5 Ch 100 W x 4 + 550 W x 1 (2Ω) 3 Ch 200 W x 2 (4Ω) + 380 W x 1 (4Ω) 3 Ch 200 W x 2 (4Ω) + 550 W x 1 (2Ω) |
|
Filters Hi-Pass Lo-Pass Band-Pass |
A Ch: 40 ÷ 150 Hz @ 12 dB/Oct. - B Ch: 80 ÷ 3.3k Hz @ 12 dB/Oct. C Ch: 40 ÷ 500 Hz @ 24 dB/Oct. A Ch: 40 ÷ 150 Hz @ 12 dB/Oct. - 80 ÷ 3.3k Hz (LO) @ 12 dB/Oct. |
|
Distortion - THD (100Hz @ 4Ω) |
0.08 % |
|
S/N Ratio (A weighted @ 1V) |
100 dB A & B Ch - 106 dB C Ch |
|
Damping factor (100Hz @ 4Ω) |
50 A & B Ch - 90 C Ch |
|
Size W x D x H mm |
170 x 349 x 46.70 |
