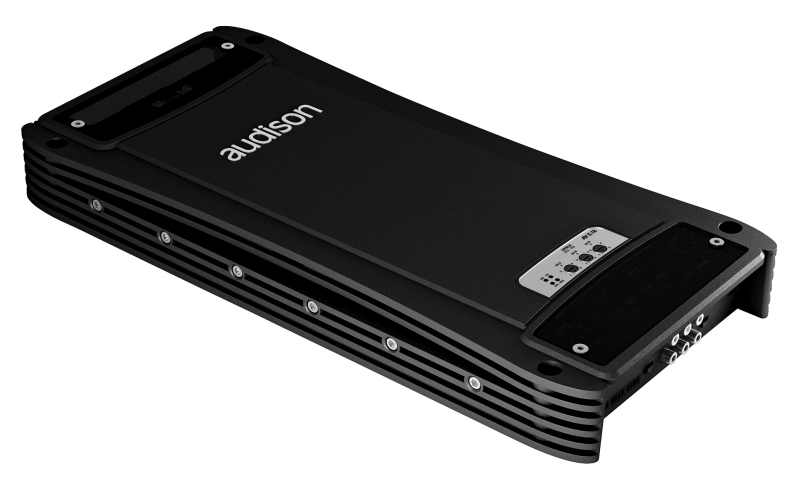

Audison, AV 5.1k

Audison, AV 5.1k
Audison, AV 5.1k Audison, AV 5.1k Audison, AV 5.1k Audison, AV 5.1k

Audison

€950,00



← Previous Product Next Product →

AV 5.1k  amplifier

1650 W total power

2 x 75 W @ 4ohm + 2 x 250 W @ 2ohm + 1 x 1000 W @ 2ohm

AB-class

AV 5.1k, 1650 W (RMS) max, five-channels: with its hybrid design, it is the specialist amplifier for front + rear + subwoofer or multi-amplified front + subwoofer systems.
Its high-quality AB Class output stage provides two channels with 250 W (RMS), combined with another pair of A class pure audio channels rated at 75 W (RMS), perfect for active two-way front speaker systems.

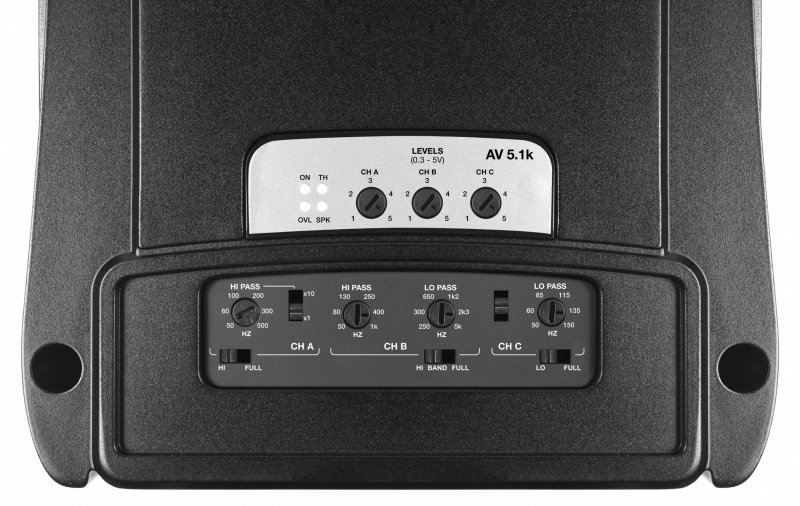

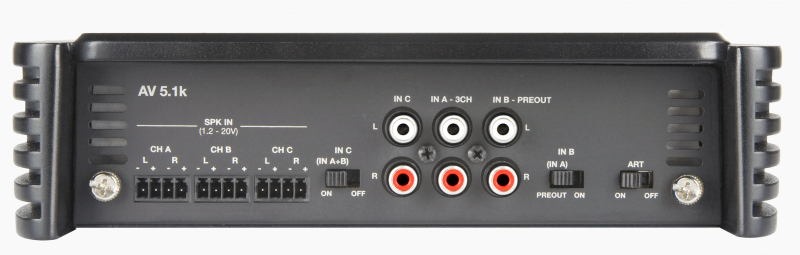

The D Class mono section provides 1000 W (RMS) for an efficiency and powerful subwoofer output. AMP (Amplifier Management Processor) constantly checks the operating status system and communicates with the user through 4 different coloured LEDs, located on the top panel; ART (Automatic Remote Turn On-Off) allows automatic turn-on/off when a remote signal isn’t available from the source.

FEATURES

  • Hybrid design made up of two 75 W A Class channels, two 250 W AB Class channels, and one 1000 W D Class channel
  • Hi-Res audio certification thanks to 4 ÷ 60k Hz bandwidth

  • TECHNOLOGIES

    VCRA
    Hi-Res audio

    According to the definition of HiRes audio provided by JAS (Japan Audio Society – jas-audio.or.jp), Voce amplifiers exceed the above 40 kHz bandwith analog requirement, providing an astonishing 4 ÷ 60k Hz (@ -3 dB, 2 VRMS, 4 Ω).

Power Output

Load Imp. 5 Channels
4 Ohm 75 W x 2 + 140 W x 2 + 600 W x 1
4/2 Ohm 75 W x 2 + 140 W x 2 + 1000 W x 1
2/4 Ohm 75 W x 2 + 250 W x 2 + 1000 W x 1
