Hertz, CP 4.800

Hertz, CP 4.800
Hertz, CP 4.800 Hertz, CP 4.800 Hertz, CP 4.800 Hertz, CP 4.800 Hertz, CP 4.800

Hertz

€399,00



← Previous Product Next Product →

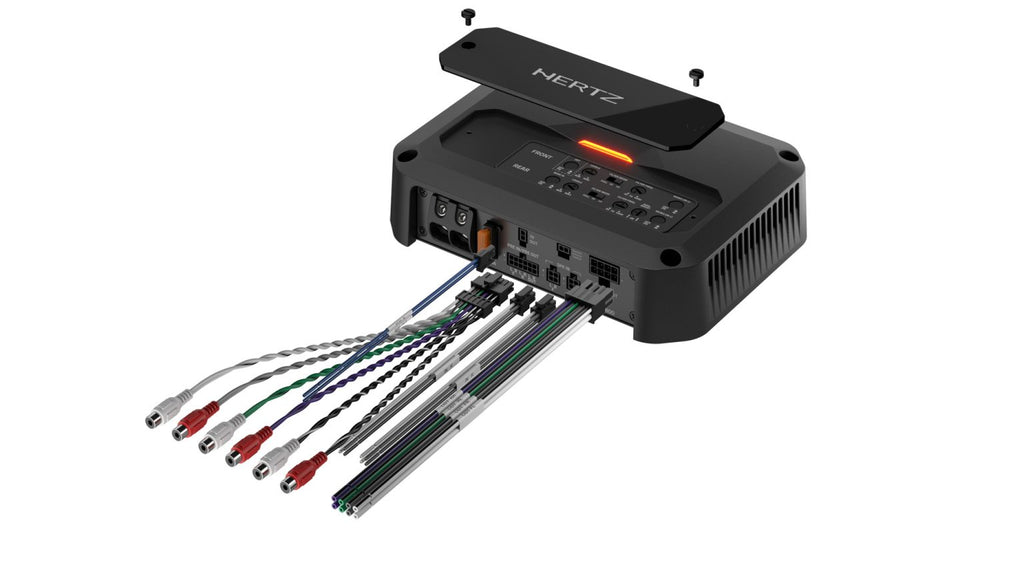

Raise your sound quality bar with the Hertz CENTO POWER CP 4.800, featuring Hi-Res Audio certification for a frequency response from 10 Hz to 41 kHz, delivering sound quality that captures every nuance of your music. This model combines a high power-to-size ratio with an efficiency greater than 85%, encapsulated in a durable aluminum diecast case for top-tier performance and a stylish appearance. This four-channel amplifier combines a high power-to-size ratio with a durable aluminum diecast case, providing top-tier performance and a stylish look. Its full Ready to Plug connections ensure easy installation, while the advanced crossover filters and bass boost options allow for tailored sound customization. It is ideal for audiophiles seeking a blend of functionality and sleek design in their car audio system.
General Specs
Channels 4 - 3 - 2
Amp class D
POWER SUPPLY
Nominal power supply voltage (fuse) 11 ÷ 15 VDC (1 x 40 A)
Operating power supply voltage 9 ÷ 18 VDC
Idling current 1.15 A
Standby current draw 4.2 uA
Consumption, MIN load impedance (Max Musical Power) 32 A
Remote IN 4 ÷ 17 VDC (1 mA)
ART - Automatic Remote Turn on/off from SPK-IN (BTL radio only) 1.5 VDC
Efficiency 85%
AMPLIFIER STAGE
Distortion - THD @ 100 Hz, 70% Rated Power 0,02 %
Damping factor @ 1 kHz, 1W 100
Bandwidth @ -3 dB 10 Hz ÷ 47k Hz
S/N ratio (A-weighted @ 1 V Input) 101 dBA
Minimum load impedance
@ 4 Ch: 2 Ω
@ 3 Ch: 2 Ω + 2 Ω + 4 Ω
@ 2 Ch: 4 Ω
Adjustable Crossovers yes
Output Power
Output power (RMS) @ 1% THD:
4Ch @ 4Ω 110 W x 4
4Ch @ 2Ω 190 W x 4
3Ch @ 4Ω / 4Ω 100 W x 2 + 400 W x 1
3Ch @ 2Ω / 4Ω 190 W x 2 + 380 W x 1
2Ch @ 4Ω 380 W x 2 (4Ω)
Total Power 760 W

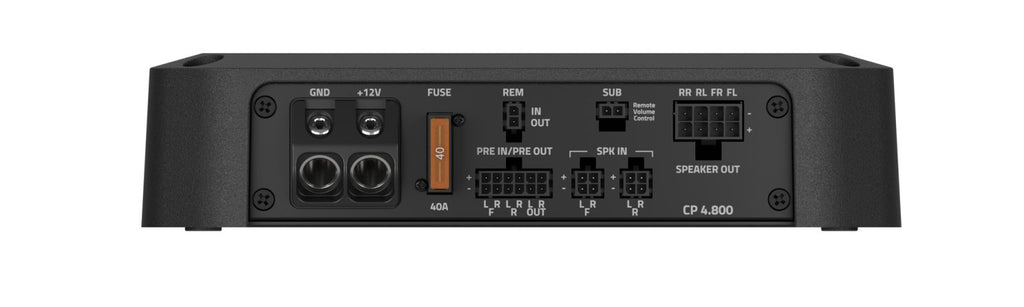

INPUTS / FILTERS
Inputs Pre-In / Speaker-In
Pre Out Full Range (Front)
Pre-In sensitivity 0.32 ÷ 8 VRMS
Speaker-In sensitivity 1.6 ÷ 40 VRMS
Front Ch Hi-Pass Full / 50-4000Hz 12dB/Oct.
Front Ch Lo-Pass Full / 50-4000Hz 12dB/Oct.
Rear Ch Hi-Pass Full / 50-4000Hz 12dB/Oct.
Rear Ch Lo-Pass Full / 50-4000Hz 12dB/Oct.
Bass Boost 50Hz 0 ÷ 9 dB
Sub Remote Volume Control -20 ÷ 6 dB (Active on Rear Ch with LPF ON)
Physical Specs
CP 4.800
Weight Kg lbs
1.75 3.85
