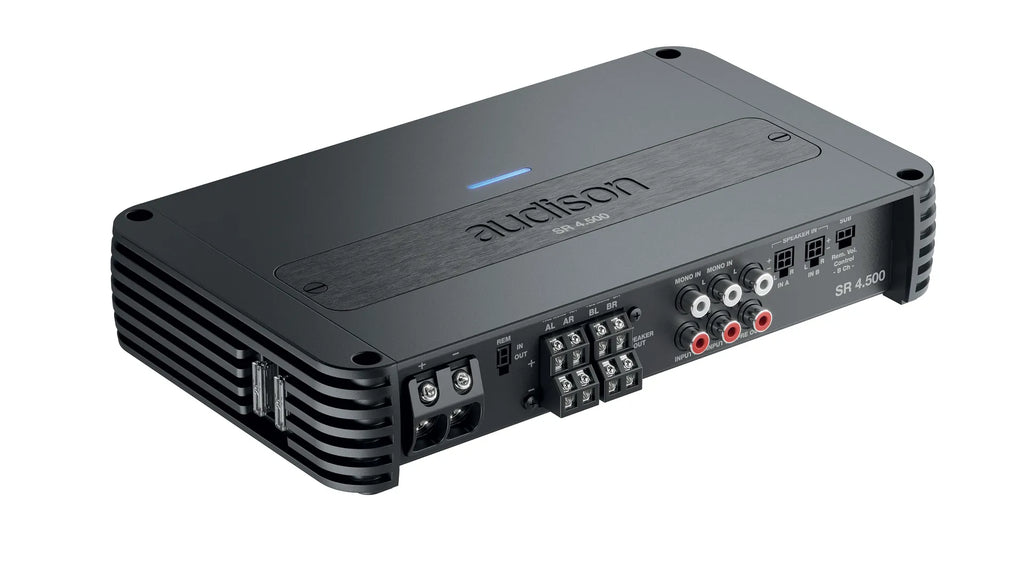

Audison SR 4.500

Audison

€309,00 €389,00
Available for pre-order



SR 4.500Amplifier | 880 W total power | 4 x 220 W @ 2ohm | D-class

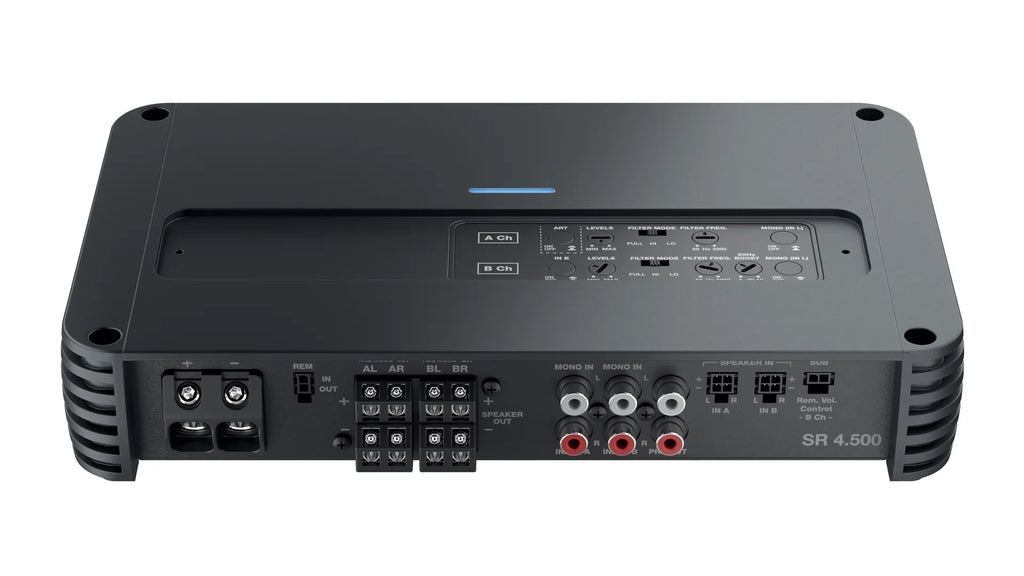

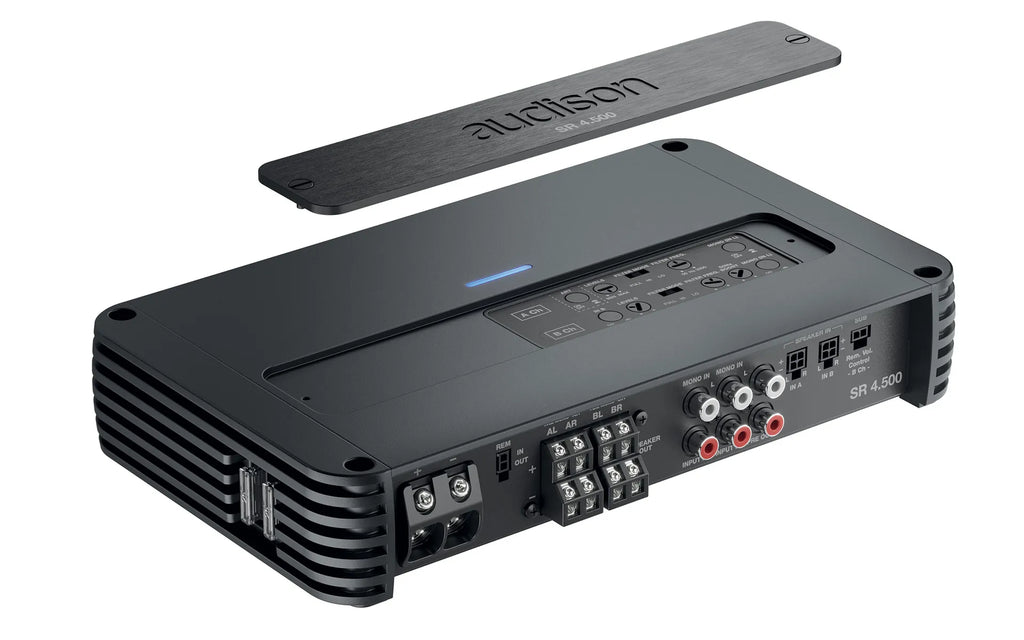

The Audison SR 4.500 4-channel amplifier with crossover features great power packed into ultra-compact dimensions (130 W x 4 @ 4Ω).As far as the electronic design is concerned, every aesthetic and functional detail of the Audison SR 4.500 has been taken care of, resulting in a compact amplifier made of extruded aluminum with rounded corners, which facilitates the installation of the product in narrow spaces. Thanks to the generous heat sinks on the two short sides of the amplifiers, there is no need for internal cooling fans, which often cause noise and dust accumulation. In keeping with tradition, the SR amplifiers confirm their vocation for versatility by including on all models a complete filter section, suitable for any kind of audio system configuration. The controls, protected by a satin-finished aluminium panel, are located on the top panel of the amplifier, so that they can be easily reached from above, even after the product has been installed. When the system includes an Audison bit processor, the filter section can be totally excluded.

AMPLIFIER TECH DATA

Channels 4
Class D-Class
Hi Level Input Yes
Low Level Input Yes
Digital Input No
Power supply voltage / fuse 11 ÷ 15 VDC / 2 x 25A
Operating power supply voltage 6.5 ÷17 VDC
Idling current 1.7 A
Idling current when off 0.09 mA
Consumption @ 14.4 VDC, 2Ω, Max Musical Power 40 A
Remote OUT 6.5 ÷ 15 VDC (150 mA)
Remote IN 6.5 ÷ 15 VDC (1 mA)
ART - Automatic Remote Turn on/off from OUTPUT BTL speakers (Selectable) 1.5 ÷ 7 VDC

AMPLIFIER STAGE

Distortion - THD @ 100 Hz, 4Ω, 70% Rated Power 0.08 %
Bandwidth A 10 Hz ÷ 35 kHz
S/N ratio A 105 dBA
Damping factor A 200
Input sensitivity Pre-In 0.2 ÷ 5 VRMS
Input sensitivity Speaker-In 0.8 ÷ 20 VRMS
Total Power RMS 880 W
Minimum load impedance @4Ch: 2Ω
@ 3Ch: 2Ω + 2Ω + 4Ω
@ 2Ch: 4Ω
Output Power (RMS) @14.4 VDC, 1% THD 4Ch 130 W x 4 (4Ω)

4Ch 220 W x 4 (2Ω)

3Ch 120 W x 2 (4Ω) + 480 W x 1 (4Ω)

3Ch 220 W x 2 (2Ω) + 440 W x 1 (4Ω)

2Ch 450 W x 2 (4Ω)
Adjustable Crossover Yes

CEA SPECIFICATIONS

Output power @ 4Ω, 1% THD+N, 14.4 V Output power @ 4Ω, 1% THD+N, 14.4 V: 125 W x 4 Ch
SN ratio (ref. 1W output) SN ratio (ref. 1W output): 83 dBA

INPUTS

Input Type Pre-In / Speaker-In
Filters Outputs PRE OUT full range (Input A)
Filter Pass A Front Ch Filters - Full Hi-pass: 50 ÷ 3.2k Hz @ 12 dB/Oct.
Filter Pass B Front Ch Filters - Full Lo-pass: 50 ÷ 3.2k Hz @ 12 dB/Oct.
Filter Pass C Rear Ch Filters - Full Hi-pass: 50 ÷ 3.2k Hz @ 12 dB/Oct.
Filter Pass D Rear Ch Filters - Lo-pass: 50 ÷ 3.2k Hz @ 12 dB/Oct
Channel Mono A/B Ch MONO IN (on/off) Yes
Inputs/Outputs Sub CH (-20 ÷ 6) dB
Inputs/Outputs Bass Boost B Ch (0 ÷12) dB

OTHER

Weight 2.12 kg

DIMENSIONS

SR 4.500
Dimension A 264 mm
Dimension B 234 mm
Dimension C 155 mm
Dimension D 135 mm
Dimension E 47.5 mm
