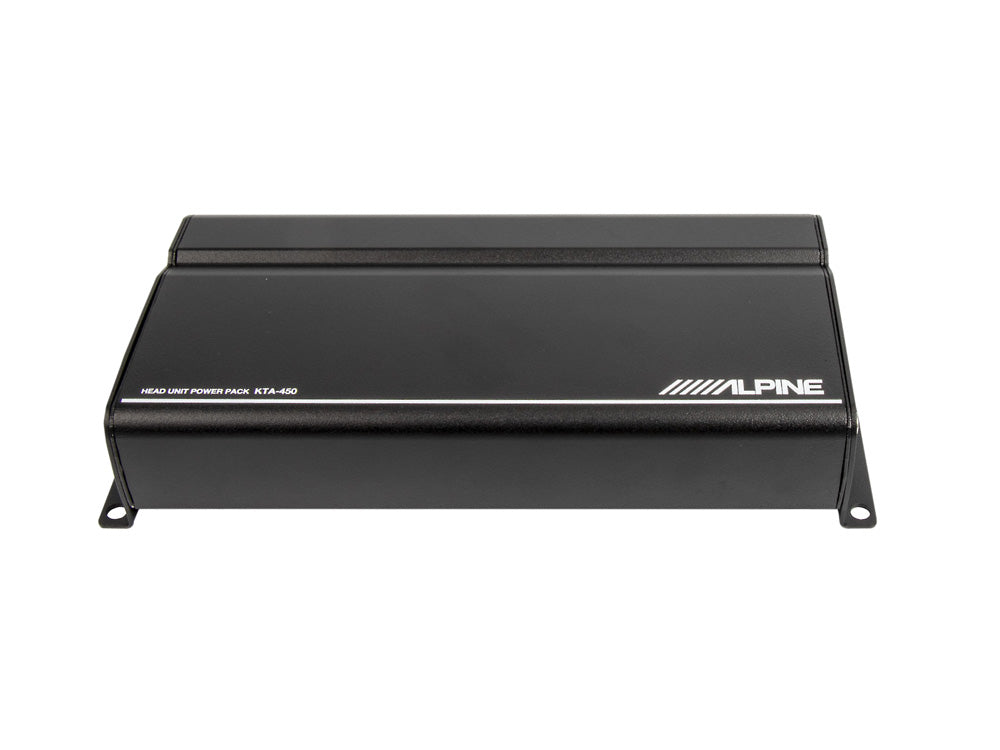

Alpine, KTA-450
4-Channel Amplifier (main unit power pack) - Dynamic short-term power at 4 x 100W - at 2-Ohms
The KTA-450 is an extremely compact 4/2-channel amplifier designed primarily for use with the iLX-W650BT headunit, but can also be used separately with each universal installation.
Featuring the new Alpine Dynamic Short Term Power (DPP) technology , the KTA-450 is capable of producing 100W RMS of power in the short term when needed.
Together with the iLX-W650BT headunit , the KTA-450 won the 2019a Innovation Auginna CES Show 2019. If you are also planning to buy the iLX-W650BT , this tiny amplifier will make a big difference in your system.
FEATURES
Install
- Terminal Layout: One side
- Small footprint for easy installation
- Connector terminal (for speaker and power cables)
General
- Amplifier Type: Class-D (Digital)
- Channel Design: 4/2 Channel (3 Channel configuration not possible)

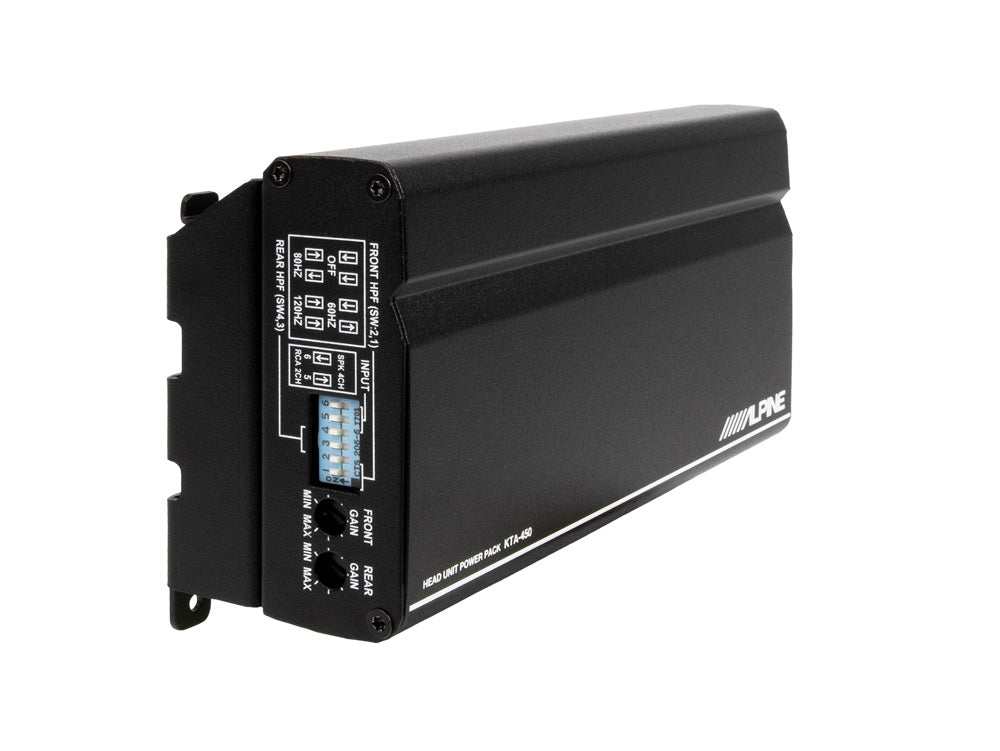

- DIP Switches
- RCA and Speaker Level Inputs
- Crossover: Adjustable High-Pass Filter (HPF)
- Gain Control: Front / Rear Adjustable

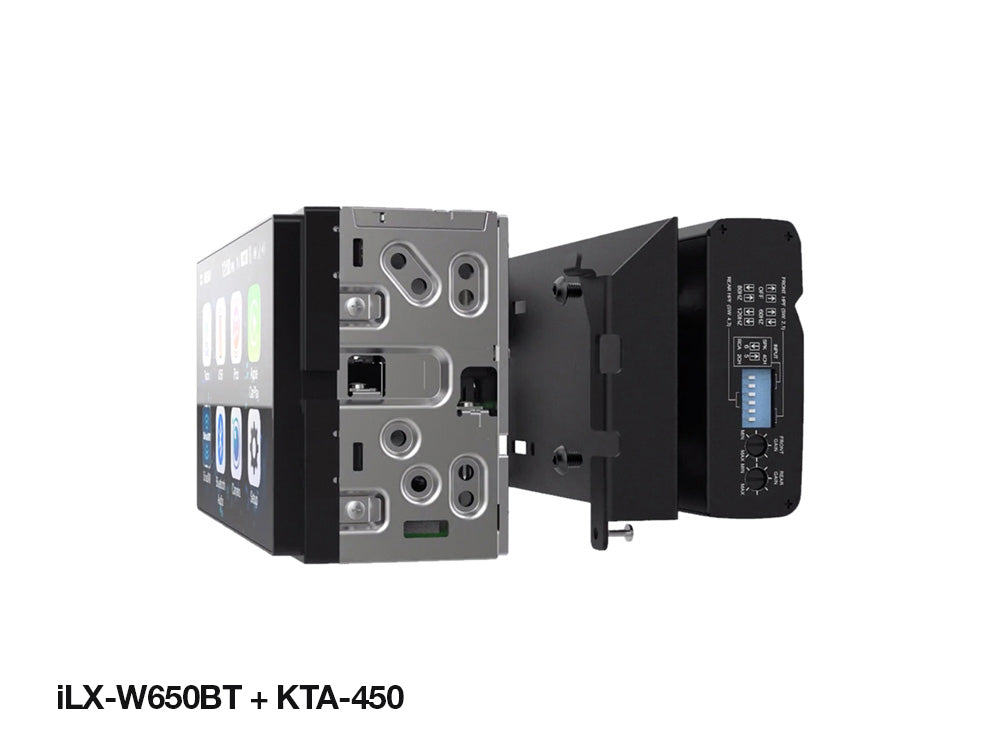

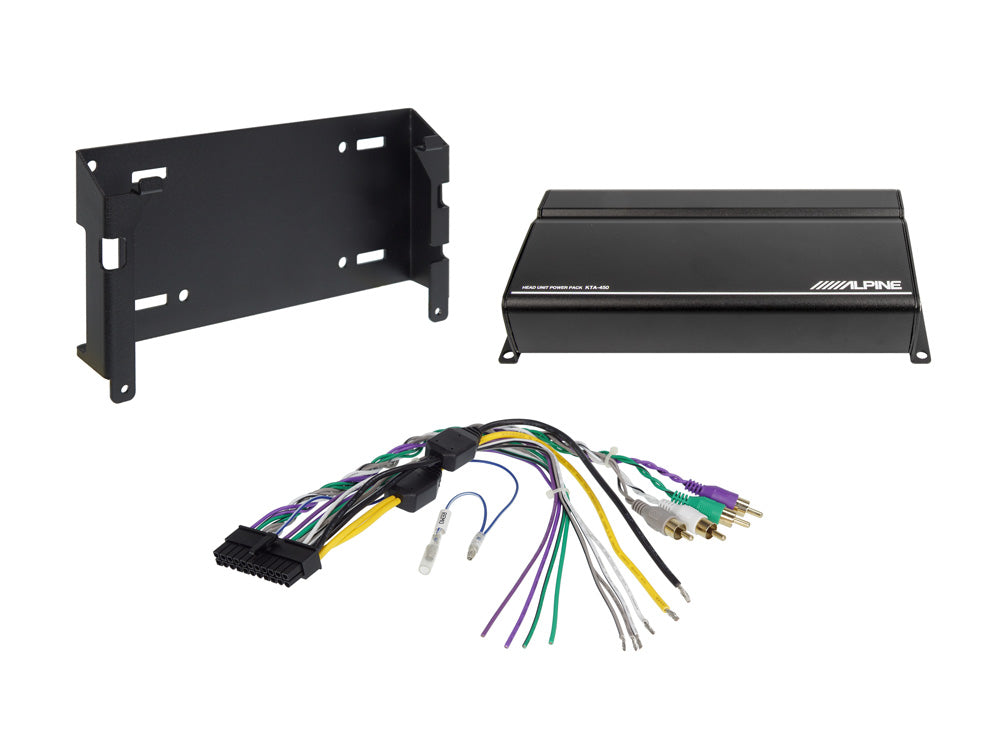

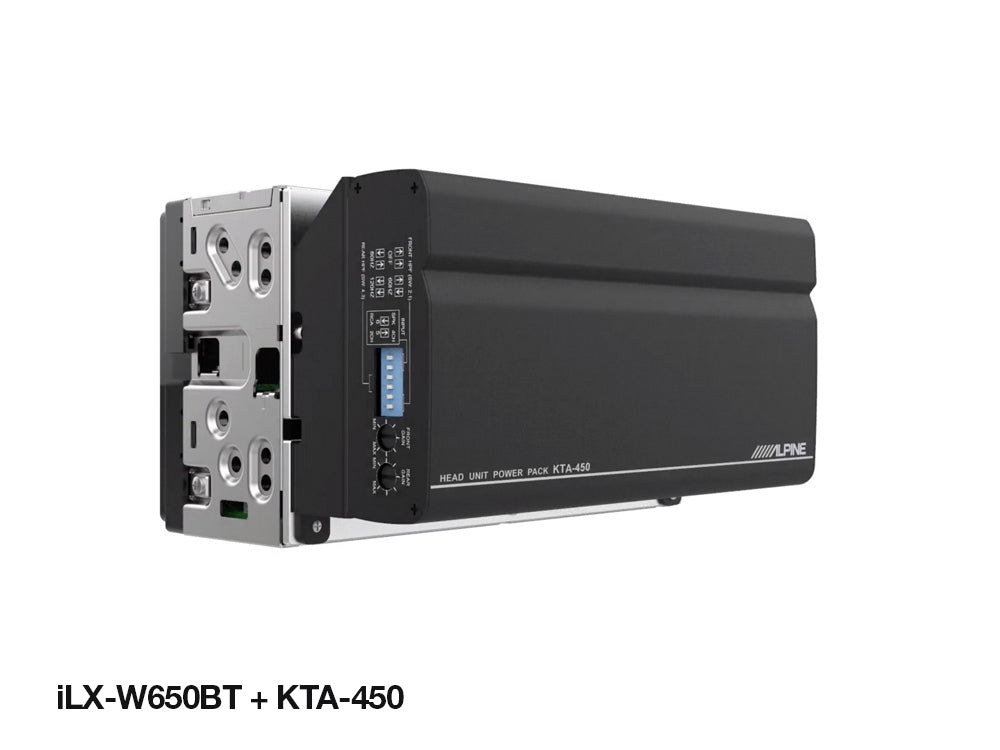

- Included Power-Stack bracket and screws for back-mount to iLX-W650BT
- Included cable harness
SPECIFICATIONS
RMS Power Ratings
- Per Channel into 2 Ohms, 14.4V (≤1% THD + N): 4 x 45W
- Per Channel into 4 Ohms, 14.4V (≤1% THD + N): 4 x 50W
- Bridged, 4 Ohms, 14.4V: 2 x 100W
DPP (Dynamic Peak Power) Power Ratings
- Per Channel into 2 Ohms, 14.4V (≤1% THD + N): 4 x 100W
- Per Channel into 4 Ohms, 14.4V (≤1% THD + N): 4 x 100W
Sound Tuning
- Crossover: Selectable HPF: 60, 80, 120Hz (-12dB / oct) on front and rear channels
General
- Power Requirements: 14.4 V.DC (9 - 16 V allowable)
- Frequency Response (+ 0 / -3dB: 1W into 4 Ohms): 15Hz - 50kHz
- THD + N (@ 10W into 4 Ohms): <0.2%
- S / N Ratio: AES-17, Ref: 1W into 4 Ohms:> 85dB
- Weight: 0.6kg
Dimensions
- Width: 89mm
- Height: 36mm (39mm with attached universal bracket)
- Length: 181mm (198mm with attached universal bracket)
