Alpine, INE-W611DC

Alpine

€900,00



6.5 "Touch Screen, Bus Navigation, DAB +, HDMI, CD / DVD Player / Apple CarPlay and Android Car Support

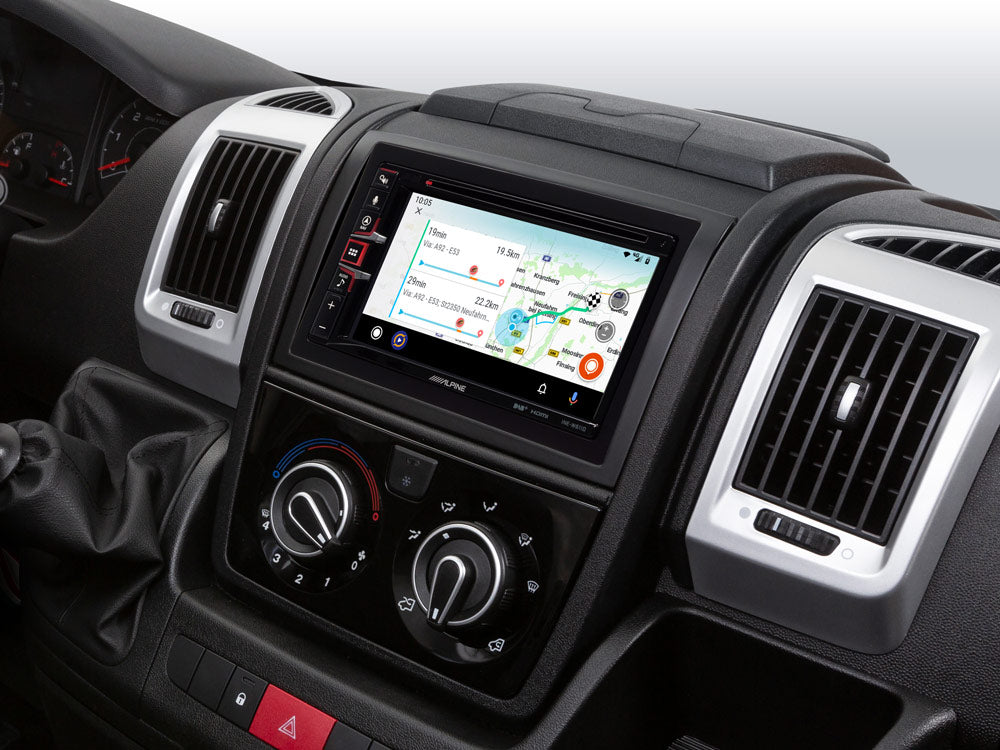

The new INE-W611DC motorhome navigation system is designed for motorhomes and camper vans, as well as for truck drivers that look for a flush-mount installation, rather than a tablet-style system.

This unit is an amazing all-in-one solution with built-in iGo Primo navigation using TomTom maps with included trucking and camper software, as well as a CD/DVD drive. The 6.5-inch touch-screen displays navigation maps, menus and movies clear and crisp. Enjoy DAB+ digital radio and use authorized apps in your car with Apple CarPlay and Android Auto.

Take advantage of your two USB ports, allowing you to charge your phone and playback music from your USB stick at the same time.

For owners of regular passenger cars we recommend the INE-W611D (version without integrated trucking and motorhome software).



Features

General

  • Power Output: 4 x 50 W High Power Amplifier
  • Display: 6.5 inch WVGA High Resolution Display
  • White LED Backlighting System
  • Control Type: Touch
  • 2x USB Ports with 1500 mA Charging Power

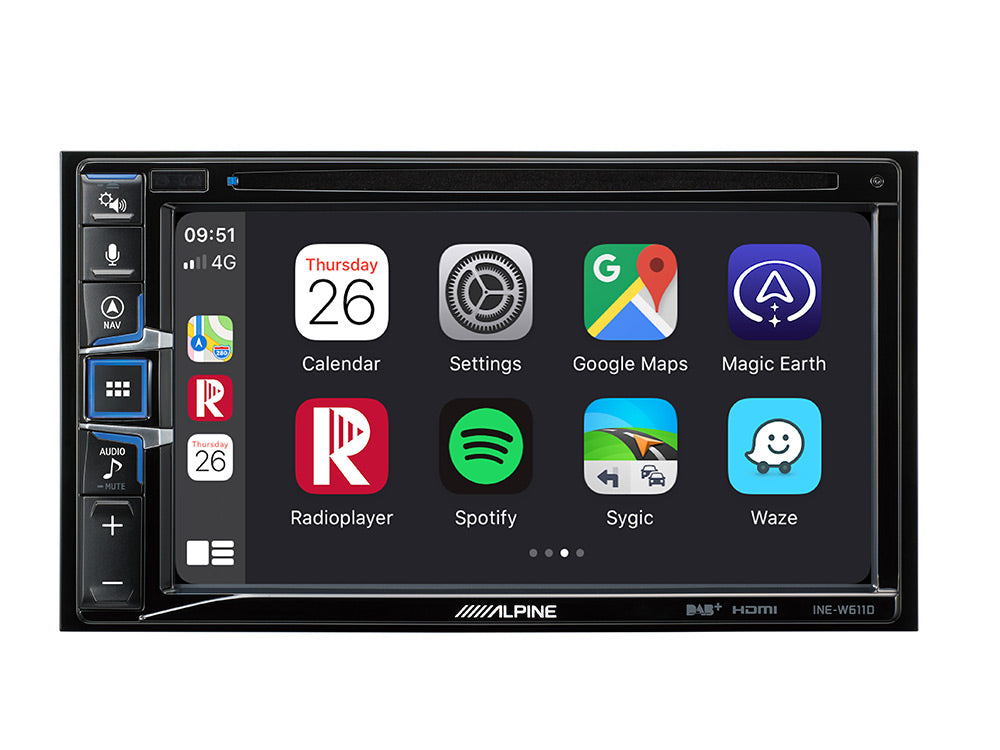

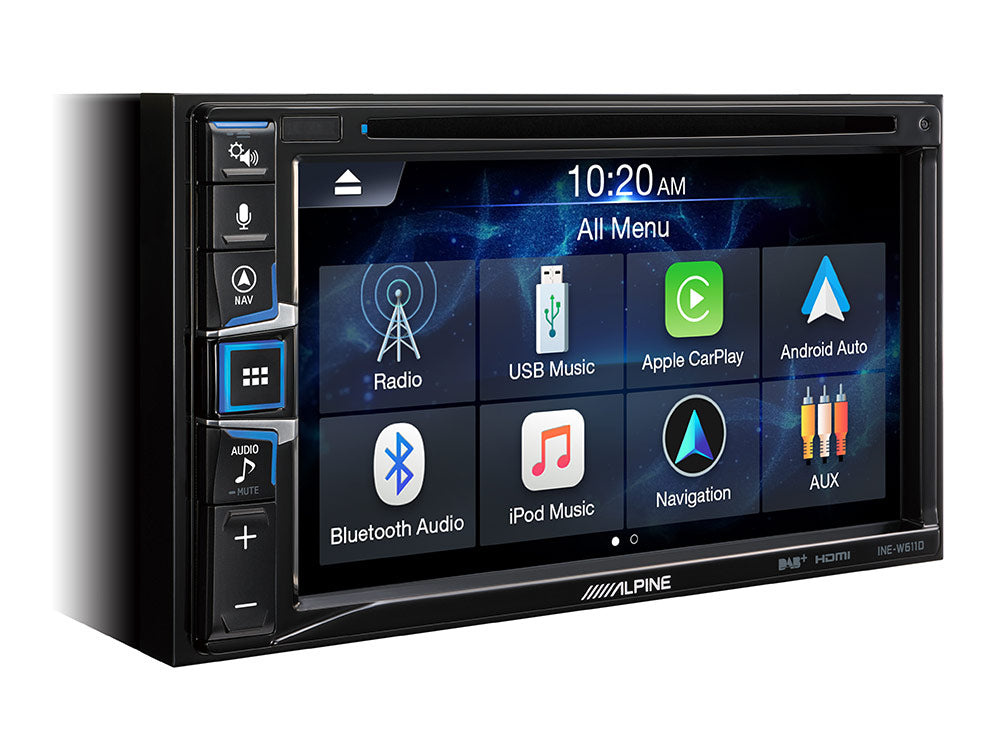

  • Apple CarPlay and Android Auto Compatible
  • Made for iPhone

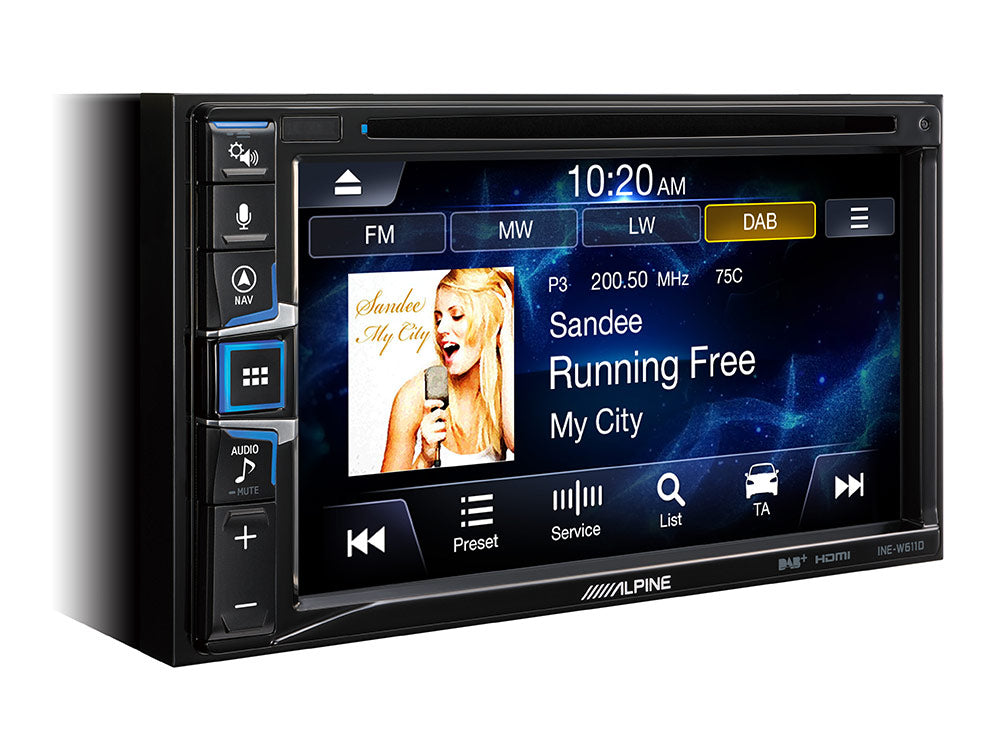

  • DAB+ Digital Radio
  • FLAC Playback (24/96 and 24/192 Compatible)
  • 3 PreOuts (4V, Front/Rear/Subwoofer)
  • AUX-Out: 1 Video Output
  • AUX-In: 1 A / V AUX Inputs
  • Steering Wheel Remote Control Ready
  • OEM Sub-display Ready
  • Remote Control Ready
  • Navigation Guidance Mix
  • Camera Connection
  • Camera Guide Line Adjustment
  • Rearview Camera Display
  • Security Code Anti-Theft
  • HDMI Input
  • Start-Stop Engine unaffected

Tuner

  • Memory Presets (FM:18 / MW:6 / LW:6)
  • Memory: Auto Memory
  • Seek Mode: Local / DX Selection

RDS

  • RDS Functions: AF, TA, TP, PTY, NEWS, RADIO TEXT

BLUETOOTH®

  • Built-in BLUETOOTH Module
  • Hands Free Calling: HFP (Hands Free Profile) Compatible
  • Streaming Music: A2DP (Advanced Audio Distribution Profile) Compatible
  • Phone Book Synchronization
  • Device Name Display
  • Auto Answer
  • Call History Display: Dialed Call / Received Call / Missed Call
  • Redial Function
  • Microphone: Microphone Included

Disc Player

  • Disc Type: DVD/CD Player
  • Disc Playback Type: DVD-Video, CD, CD-R/RW, DVD±R/±RW
  • Playable Format: DVD-Video, CDDA, MP3/WMA/AAC, DivX
  • M.I.X. Random Play
  • Repeat
  • DVD Direct Menu Control
  • CD Text Display
  • CD Text Name Search
  • DAC: 24 Bit DAC

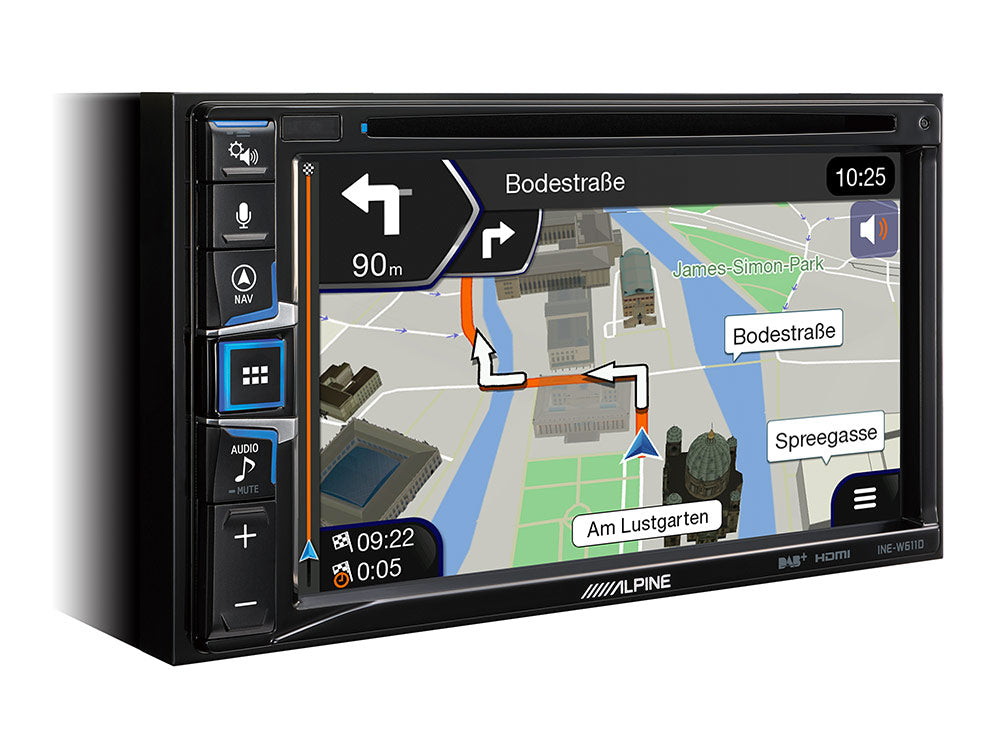

Navigation Function

  • TomTom Maps for 48 Countries (Western and Eastern Europe)
  • Pre-installed motorhome and trucking software
  • Creation of own motorhome and truck profiles possible
  • 3 Years free-Of-Charge Map Update
  • iGo Primo Nextgen Navigation
  • 29 Menu Languages
  • 29 Languages for Voice Guidance, 15 Languages for Text-to-Speech (TTS)
  • Advanced Address Search
  • Post Code Search
  • Advanced POI Functions
  • Smart Routes using historic traffic patterns
  • Advanced Route Planning
  • Eco Route Search
  • Advanced TMC Mode
  • Map Display Mode: 2D Heading Up, 2D North Up, 3D
  • Elevation Map Display:
  • 3D Motorway Junction View: Junction View with Sign Post
  • Lane Guidance
  • Highway Mode
  • Text-to-Speech
  • Positioning Sensor: GPS and Glonass

USB Media Connection

  • USB Video playback
  • USB Connection: USB Extension Cable Included
  • Music & Video Playback Compatible
  • Music Playback: MP3/WMA/AAC Playback
  • Video Playback: DivX Playback

Sound Tuning

  • Subwoofer Level Adjustment
  • Subwoofer Phase Select
  • Equalizer: Flat, Pops, Rock, News, Jazz, Electrical Dance, Hip Hop,  Easy Listening, Country, Classical
  • 6-Channel Digital Time Correction
  • Digital Crossover Setting
  • MediaXpander
  • Application Volume Level Setting

Specifications

Display

  • Screen Size: 6.5 inch
  • LCD Type: Transparent type TN LCD
  • Number of Picture Elements: 1,152,000 pcs. (800 × 480 × 3 (RGB)) Effective Number of Picture Elements: 99% or more
  • Illumination System: LED

Tuner

  • FM Tuning Range: 87.5 – 108.0 Mhz
  • AM / MW Tuning Range: 531 -1,602KHz
  • LW Tuning Range: 153 – 281 kHz
  • Mono Usable Sensitivity: 9.3 dBf (0.8 μV/75 ohms)
  • 50 dB Quieting Sensitivity: 13.5 dBf (1.3 μV/75 ohms)
  • Alternate Channel Selectivity: 80 dB

DAB

  • Tuning Range BAND III:  174.928 - 239.2 MHz
  • Tuning Range L-BAND: 1,452.96 - 1,490.624 MHz
  • Usable Sensitivity: -101 dBm
  • Signal-to-Noise Ratio: 85 dB

USB

  • USB requirements: USB 2.0
  • Max. Power Consumption: 1,500 mA (CDP Support)
  • USB Class: USB (Mass Storage Class)
  • File System: FAT16/32
  • Decoding Formats: MP3/WMA/AAC/FLAC/OGG/APE/MP2
  • Number of Channels: 2-Channels (Stereo)
  • Total Harmonic Distortion: 0.016% (at 1 kHz)
  • Dynamic Range: 95 dB (at 1 kHz)
  • Signal-to-Noise Ratio: 85 Db
  • Channel Separation: 75 dB (at 1 kHz)

HDMI

  • Input Format : 480p/720p

Navigation

  • GPS Reception frequency: 1,575.42 ±1 MHz
  • GPS Reception sensitivity: -130 dBm max.

Bluetooth

  • Bluetooth Specification: Bluetooth v4.0
  • Frequency band: 2,402 – 2,480 MHz
  • Output Power: -6~+4 dBm Ave. (Power class 2)
  • HFP (Hands-Free Profile)
  • PBAP (Phone Book Access Profile)
  • A2DP (Advanced Audio Distribution Profile)
  • AVRCP (Audio/Video Remote Control Profile)

General

  • Power Requirement: 14.4 V DC (11–16 V allowable)
  • Operating temperature: 4°F to +140°F (-20°C to + 60°C)
  • Maximum Power Output: 50W x 4
  • Preout (Front, Rear):  4V/10k ohms (max.)
  • Preout (Subwoofer): 4V/10k ohms (max.)
  • Weight (unit only): 2.05 kg

Chassis Size

  • Width: 178 mm
  • Height: 100 mm
  • Depth: 142 mm
