Alpine, INE-F904D

Alpine

€999,00



1DIN Housing - 9-inch touchscreen, Built-in Navigation, DAB +, HDMI and Apple CarPlay / Android Car support

The hugely popular Alpine Halo9 is now also available with  built-in navigation . This is a particularly good device for touring buses. The INE-F904D brings  navigation on any 9-inch screen to any car with a  1DIN mounting hole .

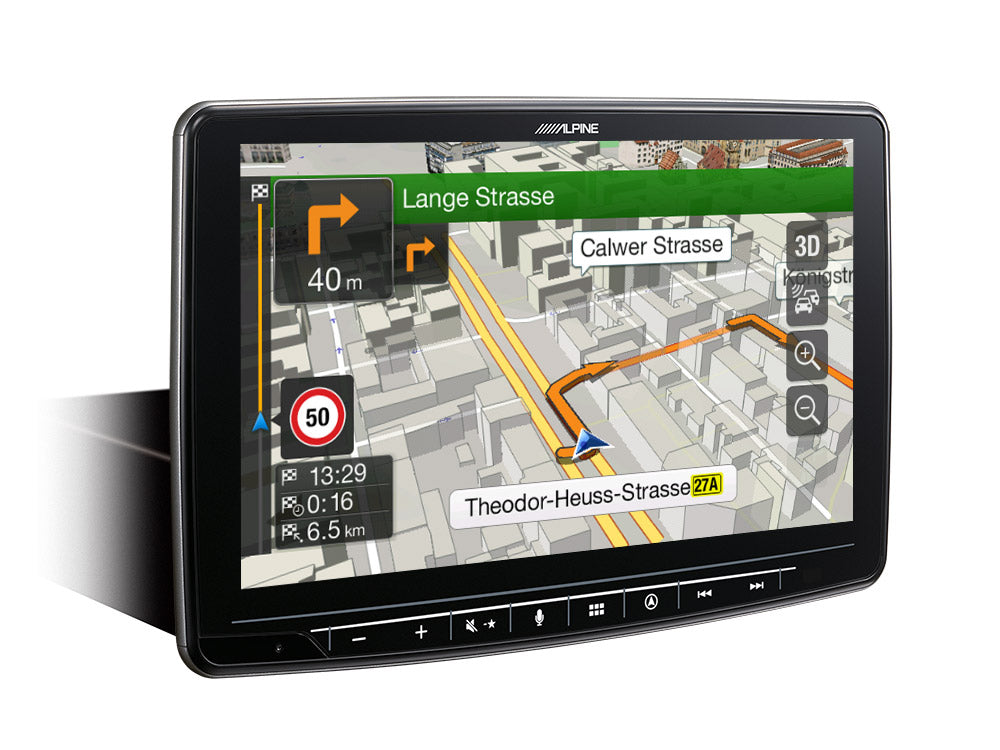

The new " Alpine Halo9 Navi " hides iGo Primo NextGen navigation with TomTom maps for 46 European countries and has a  3-year free map update period . You can also use navigation applications (such as Google maps, Waze, etc.) through Apple CarPlay  and Android Auto .

The ultra-thin screen seems to "float" in the car's armature and also has a white LED backlight at the bottom.

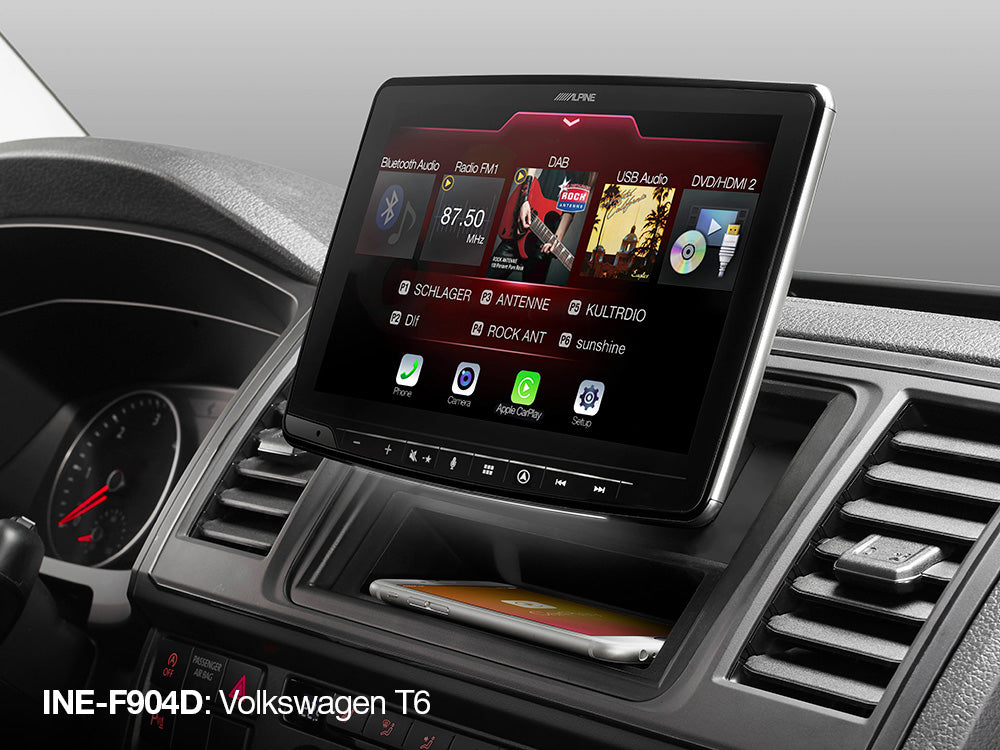

In addition to a very modern navigation application, it also has a built-in  DAB + digital radio , USB video player, Bluetooth phone and audio streaming and much more.

Bring the future of car media to your car with Alpine Halo9 Navi.

This model is also available with pre -installed coach software - INE-F904DC .



FEATURES
Tuner

  • Memory Presets: Preset Stations (FM: 12 / MW: 6 / LW: 6)
  • Memory: Auto Memory
  • Seek Mode: Local / DX Selection

RDS

  • RDS Functions: PI, PS, AF, TA, TP, PTY, NEWS, RADIO TEXT

DAB Tuner

  • DAB + Tuner Built-in
  • DAB + / DMB Supported
  • DAB + Slideshow Service
  • DLS (Dynamic Label Service)
  • DAB Service Following
  • RDS Fallback (where available)
  • Service Preset: 18 Preset Memory
  • Auto Ensemble / Service Memory
  • Service Search Function
  • PTY Search Function
  • Alphabet Search Function
  • Antenna Power Supply Selection

BLUETOOTH®

  • Built-in BLUETOOTH® Module
  • Wide Band Speech Technology
  • HFP (Hands-Free Profile) Compatible
  • Streaming Music: A2DP (Advanced Audio Distribution Profile) Compatible
  • Streaming Music Control: AVRCP (Audio / Video Remote Control Profile) Ver.1.5 Compatible
  • Connection: SSP (Simple Secure Pairing) Supported
  • Individual Profile Connection Hands Free Phone and Music Streaming
  • Phone Book: Phone Book Synchronization
  • Speed ​​Dial: 4 Preset Memory (per phone)
  • Multiple Phone Number Registration: 5 Phone Numbers can be stored for one name
  • Call History Display: Outgoing Calls / Incoming Calls / Missed Calls
  • Speech Volume Level Adjustment: Possible for Outgoing and Incoming Volume
  • Signal Strength Indicator
  • Battery Level Indicator
  • Menu Language Selection: 24 Languages
  • Firmware Updatable
  • Microphone Included

Made for iPod® / iPhone®

  • Connection: KCU-471i Required (Sold separately)
  • Available Selections: Playlist / Artist / Album / Song / Podcast / Genre / Composer / Audiobook
  • Alphabet Search
  • Artwork Display
  • Direct Up / Down: Playlist / Artist / Album / Genre / Composer
  • MIX (Shuffle) Play: Song, Albums, All
  • Repeat
  • Battery Charging

Connectivity

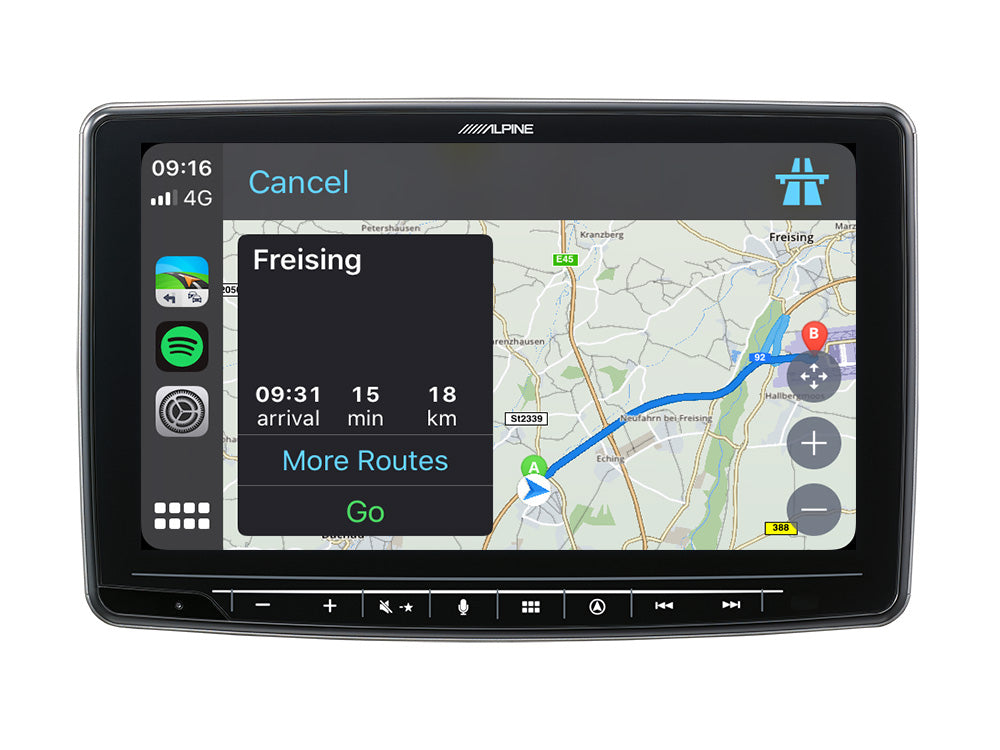

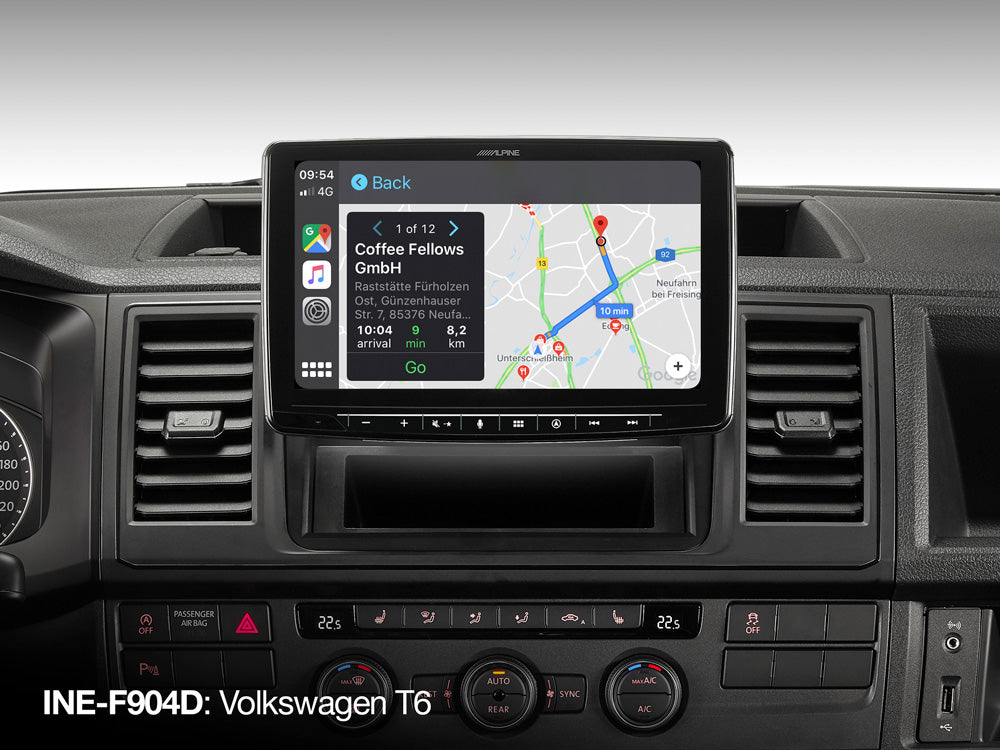

  • Works with Apple CarPlay (requires CarPlay enabled iPhone)

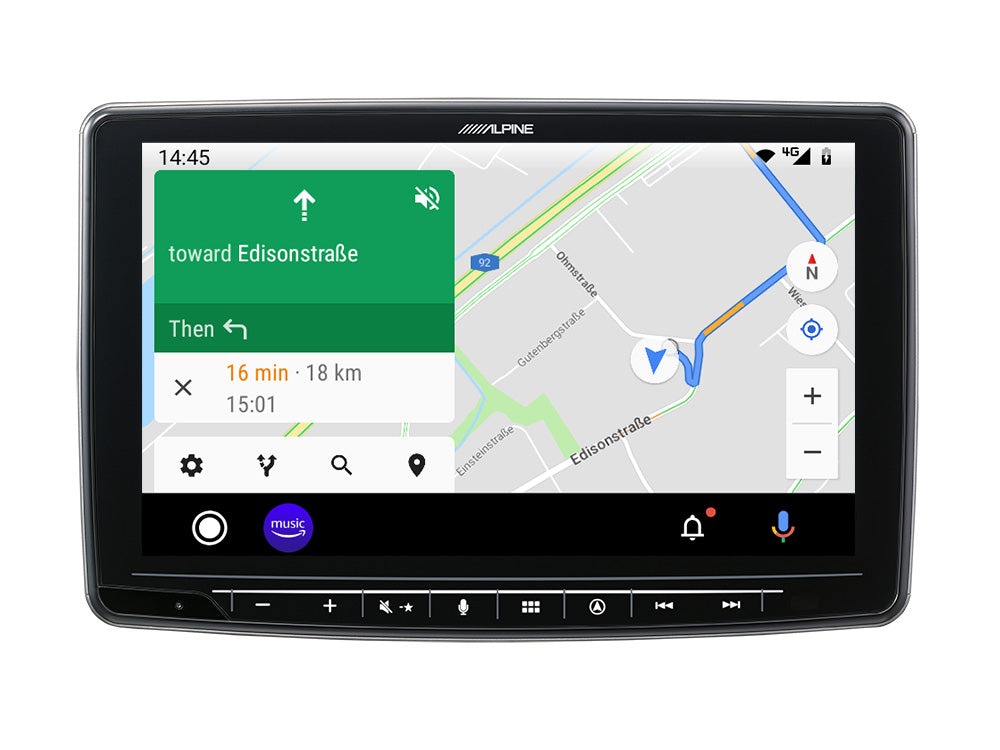

  • Works with Android Auto (Requires Android Auto enabled smartphone)

Navigation Functions

  • Map Coverage: 46 Countries (Western and Eastern Europe) by TomTom maps
  • 3 years free-of-charge map update
  • Menu Language: 29 Languages
  • Voice Guidance Language: 29 Languages ​​for Voice Guidance, 15 Languages ​​for Text-to-Speech (TTS)
  • Advanced Address Search
  • Post Code Search
  • Free Form Search
  • Partial Name Search
  • Advanced POI Functions
  • Smart Routes: Smart Routes using historic traffic patterns
  • Advanced Route Planning
  • Eco Route Search
  • 7 Alternative Route Recommendation
  • Advanced TMC Mode
  • Map Display Mode: 2D Heading Up, 2D North Up, 3D
  • 3D City Mode: 3D Building / Icon Display
  • Elevation Map Display: 3D maps with elevation mode
  • 3D Motorway Junction View: Junction View with Sign Post
  • Drive Lane Suggestion
  • Tunnel Mode
  • Highway Mode
  • Voice Guidance Mixing
  • Text-to-Speech
  • Direct Phone Call from POI data
  • 3 Positioning Sensors: GPS / Glonass, Gyroscope, Vehicle Speed ​​Pulse

USB Media Connection

  • USB Connection: USB Extension Cable Included
  • Music Playback: FLAC / MP3 / WMA / AAC compatible
  • Video Playback: MP4 compatible
  • File / Folder Name Search
  • Tag Info Search
  • Folder Up / Down
  • MIX Random Play
  • Repeat

Sound Tuning

  • Bass Engine SQ
  • Bass Engine ™ Pro
  • Subwoofer Level Adjustment
  • Subwoofer Phase Select
  • 4V High Voltage PreOut
  • Equalizer: Flat, Pops, Rock, News, Jazz, Electrical Dance, Hip Hop, Easy Listening, Country, Classical
  • Dual HD EQ (9-band Parametric Equalizer front / rear)
  • 6 Channel Digital Time Correction
  • Digital Crossover Setting
  • Customized Sound Setting by Car Type
  • MediaXpander HD
  • Application Volume Level Setting
  • Sound Setting Data Download
  • Easy, Step-by-Step Sound Customization
  • Alpine TuneIt App ready

General

  • Power Output: 4 x 50 W High Power Amplifier
  • Advanced Power IC
  • Display: 9-inch Capacitive WVGA High Resolution Display
  • White LED Backlighting System
  • Control Type: Touch, Drag, Flick
  • My Favorites Function
  • Automatic Setting Change for 2 Users
  • AUX-In: 1 A / V AUX Input (3.5mm micro jack)
  • Steering Wheel Remote Control Function
  • Vehicle Display Interface Ready (UART connection)
  • Camera Connection & Built-in Controls for Multi-View Cameras
  • Camera Guide Line Adjustment
  • Rearview Camera Display Automatic Boot-up
  • Menu Language: 24 Languages ​​(for AV / Bluetooth),
  • Clock
  • Auto Dimmer
  • Anti-theft security code
  • Firmware Updatable
  • Power Antenna Lead
  • Remote Turn-On
  • HDMI Input (Alpine Special HDMI connector required)
  • Engine Start-Stop unaffected

Installation

  • Perfect FIT Kit Solutions available

SPECIFICATIONS

Screen

  • Screen Size: 9-inch Capacitive WVGA
  • LCD Type: Transparent Type TN LCD
  • Operation System: TFT Active Matrix
  • Number of Picture Elements: 1,152,000 pixels (800 x 3 x 480)
  • Illumination System: White LED Backlighting
  • Effective Number of Picture Elements: 99.99%
  • Color System: NTSC, PAL

Max Power Output Ratings

  • Max Power Output: 4 x 50 W

FM Tuner

  • Tuning Range: 87.5 - 108.0 MHz
  • Mono Usable Sensitivity: 8.1 dBf (0.7 µV / 75 ohms)
  • 50dB Quieting Sensitivity: 12 dBf (1.1 µV / 75 ohms)
  • Alternate Channel Selectivity: 80 dB
  • Signal-to-Noise Ratio: 65 dB
  • Stereo Separation: 35 dB
  • Capture Ratio: 2 dB

MW Tuner

  • Tuning Range: 531 - 1.602 kHz
  • Usable Sensitivity (IEC Standard): 25.1 µV / 28 dBf

LW Tuner

  • Tuning Range: 153 - 281 kHz
  • Usable Sensitivity (IEC Standard): 31.6 µV / 30 dBf

USB

  • USB Requirements: USB 2.0
  • Max. Power Consumption: 1,500 mA (CDP Support)
  • USB Class: Mass Storage Class, Play From Device
  • File System: FAT 16/32
  • MP3 Decoding: MPEG-1/2 AUDIO Layer-3
  • WMA Decoding: Windows Media ™ Audio
  • AAC Decoding: ACC-LC format ′ ′ .m4a ′ ′ file
  • FLAC Decoding
  • Number of Channels: 2-Channel (Stereo)
  • Frequency Response: 5 - 20k Hz ± 1 dB * Frequency Response may differ depending on the encoder software / bit rate
  • Total Harmonic Distortion (at 1kHz): 0.008%
  • DynamicRange (at 1kHz): 95 dB
  • Signal-to-Noise Ratio: 100 dB
  • Channel Separation (at 1kHz): 85 dB

GPS / Glonass

  • GPS / Glonass compatible navigation antenna included

BLUETOOTH®

  • BLUETOOTH® Version: Bluetooth V2.1 + EDR
  • Output Power: +4 dBm Max. (Power class 2)
  • HFP (Hands Free Profile)
  • OPP (Object Push Profile)
  • PBAP (Phone Book Access Profile)
  • HSP (Head Set Profile)
  • A2DP (Advanced Audio Distribution Profile)
  • AVRCP (Audio / Video Remote Control Profile)
  • SPP (Serial Port Profile)

Sound Tuning

  • Subwoofer Level Adjustment: 0 to +15
  • Subwoofer Phase Setting: 0 ° or 180 °
  • BASS ENGINE SQ: 5Mode, Level 0 to +6
  • HighPassFilter: 20/25 / 31.5 / 40/50/63/80/100/125/160/200 Hz
  • HighPassFilter (Slope): Off / -6 / -12 / -18 / -24 dB / oct.
  • HighPassFilter (Gain): -12 to 0 dB
  • LowPassFilter: 20/25 / 31.5 / 40/50/63/80/100/125/160/200 Hz
  • LowPassFilter (Slope): Off / -6 / -12 / -18 / -24 dB / oct.
  • LowPassFilter (Gain): -12 to 0 dB
  • Time Correction: 0.0 - 9.9ms (0.1ms step)
  • Dual HD EQ Front + Rear
  • Parametric Equalizer (Band 1): 20 - 100 Hz
  • Parametric Equalizer (Band 2): 63 - 315 Hz
  • Parametric Equalizer (Band 3): 125 - 500 Hz
  • Parametric Equalizer (Band 4): 250 - 1k Hz
  • Parametric Equalizer (Band 5): 500 - 2k Hz
  • Parametric Equalizer (Band 6): 1k - 4k Hz
  • Parametric Equalizer (Band 7): 2k - 7.2k Hz
  • Parametric Equalizer (Band 8): 5.8k - 12k Hz
  • Parametric Equalizer (Band 9): 9k - 20k Hz
  • Parametric Equalizer (Gain): -14 to +14
  • Application Volume Level Setting: -14 to +14

HDMI Section

  • Input Format 480p / 720p

General

  • Power Requirement: 14.4 V. DC (11-16V allowable)
  • Pre Output Voltage (Before Clipping): 4 V / 10k ohms
  • Maximum Mounting Angle: 30 °

Dimensions

  • Din Size: 1DIN chassis and 9 ”Capacitive Touch Screen
  • Chassis Size (W x H x D) mm: 178 x 50 x 160 mm
  • Nose Piece Size (W x H x D) mm: 235.2 x 152.2 x 19 mm
