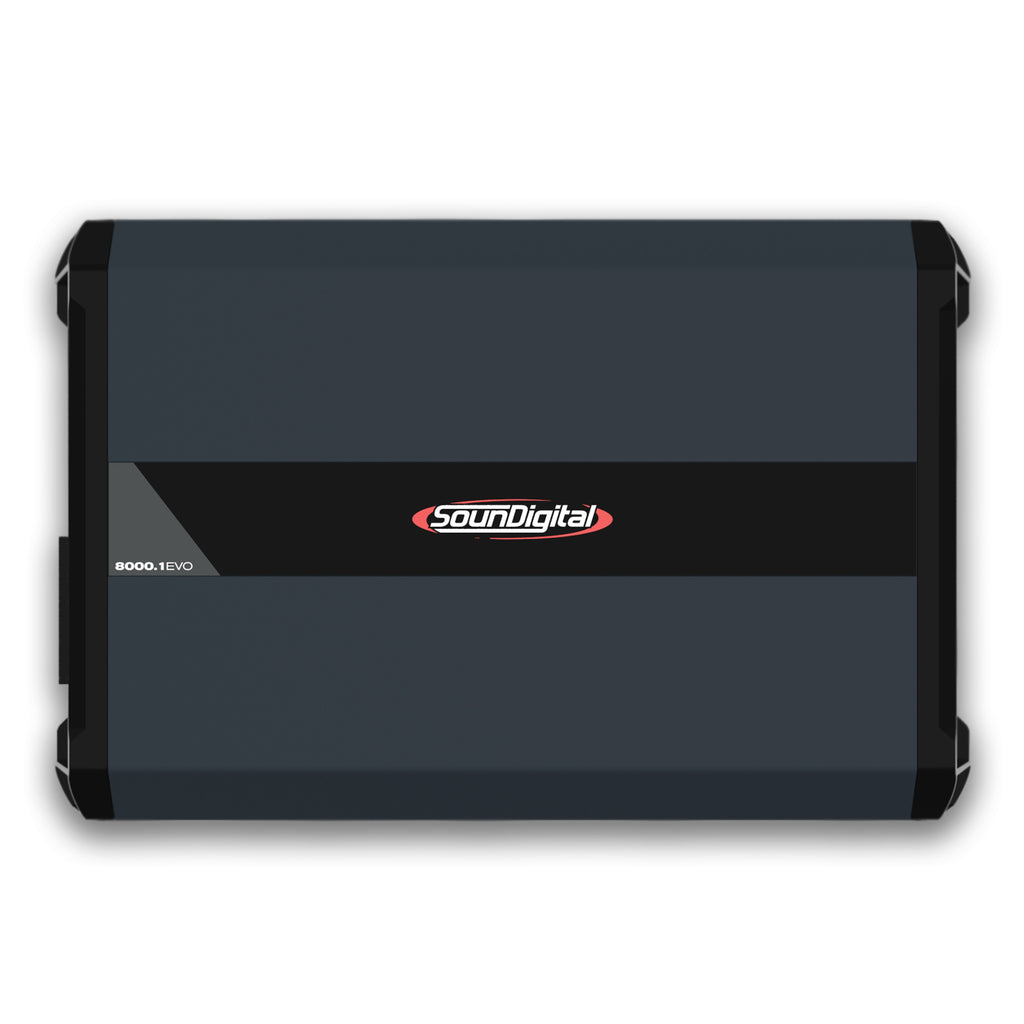

SounDigital 8000.1 EVO 4.0 - 2 Ohm
8000.1 EVO 4.0
The 8000.1 EVO 4.0 is a compact, modern amplifier that delivers 8000W RMS of power over 1 channel.
The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.
Available in:
- 1 Ohm
- 2 Ohm
General Specifications
+
-
8000.1 EVO 4.0 – 1 OHM
Power @ 1Ω: 1 X 8000W RMS
Power @ 2Ω: 1 X 5280W RMS
Power @ 4Ω: 1 X 3485W RMS -
8000.1 EVO 4.0 – 2 OHMS
Power @ 1Ω: N/A
Power @ 2Ω: 1 X 8000W RMS
Power @ 4Ω: 1 X 5280W RMS -
Operating Voltage:
8V – 16V
-
Current Draw (Music):
402A
-
Current Draw (Max):
804A
-
Recommended Fuse (Music):
500A
-
Total Efficiency:
79%
-
Damping Factor:
>1000
-
Frequency Response:
5Hz – 20kHz
-
SNR:
82dB
-
Crossover
LP: 50Hz – 20kHz
HP: 5Hz – 80Hz -
Width:
8.8 in / 22,5 cm
-
Length:
13.9 in / 35,4 cm
-
Height:
2.8 in / 7,1 cm
-
Weight:
4,5 Kg
