SounDigital 35000.1 EVOX 1 ohm
35000.1 EVOX

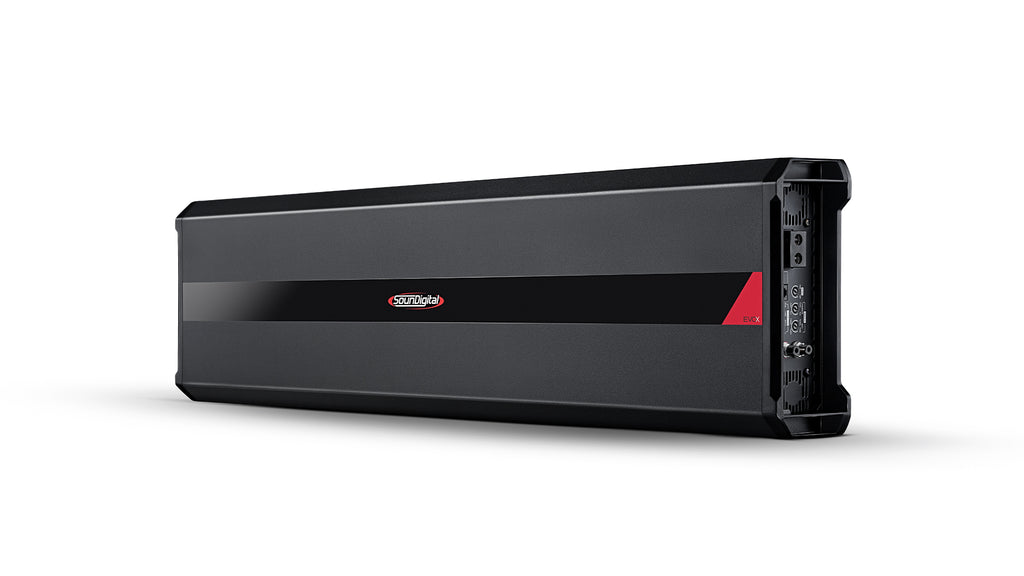

The 35000.1 EVOX is a compact, modern amplifier that delivers 35000W RMS of power over 1 channel. Amplifier for exclusive use in competitions.
The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.
Available in:
- 1 Ohm
General Specifications
+
-
35000.1 EVOX – 1 OHM
Power @ 1Ω: 1 X 35000W RMS
Power @ 2Ω: 1 X 23100W RMS
Power @ 4Ω: 1 X 15246W RMS -
Frequency Response (-3dB):
5Hz ~ 500 Hz
-
High Pass Filter (12dB/octave):
3Hz ~ 30Hz
-
Low Pass Filter (12dB/octave):
5Hz ~ 500 Hz
-
Bass Boost Level:
0dB ~ +12dB
-
Bass Boost Frequency:
35Hz ~ 55Hz
-
Operating Voltage:
9V ~ 16V
-
SNR:
76dB
-
Input Sensitivity (RCA):
0.8 ~ 4V
-
Current Draw (music):
N/A
-
Current Draw (max):
3429A
-
Total Efficiency:
81%
-
Damping Factor (@100Hz nominal impedance):
200
-
Power Cable:
90mm² (000 AWG)
-
Speaker Cable:
2 x 21mm² (4 AWG)
-
Remote Cable:
1.5mm² (15 AWG)
-
Recommended Fuse (music):
3500A
-
Recommended Battery (minimum):
3500Ah
-
Width:
8.9 in / 22.4 cm
-
Length:
34 in / 86.3 cm
-
Height:
2.8 in / 7.1 cm
-
Weight:
14.64 kg / 32.27 lb
